  • Plan 1-148
  • 1040 sq ft
  • 3 beds
  • 2.00 baths
  • 40' wide
  • 26' deep
more details
Houzz
Email Print

Plans

Main Floor Plan

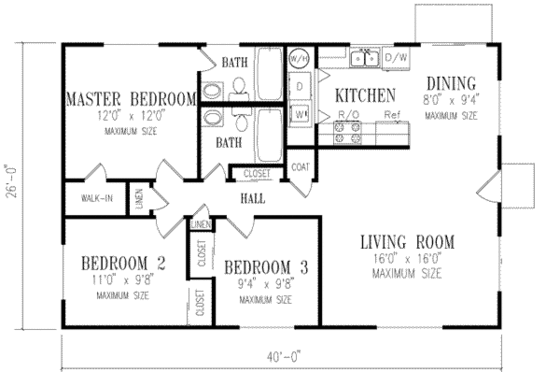

Saved! Houseplans.com Ranch Main Floor Plan Plan #1-148

Specifications

Plan Styles
Ranch
Traditional
Basic Features
Bedrooms
3
Stories
1
Potential Bedrooms
0
Garage Stalls
0
Baths
2.00
Area
Main Floor Sq Ft
1040 sq ft
Total Sq Ft
1040 sq ft
