Mediterranean Style Plan 27-478

Key Specs


Plan Sq Ft

10993
sq ft

Plan Bedrooms

5
Beds

Plan Bathrooms

7
Baths

Plan Floors

2
Floors

Plan Garages

4
Garages

Questions? Get Personalized Help
Select Plan Set Options
What's included?
$85.00
$33.15
Subtotal
NOW $7892.85
You save $1392.86
(15% savings)
Sale ends soon!
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Questions? Get Personalized Help



Hours: Mon - Fri 8:30 - 8:30 (EDT)

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Key Specs


Plan Sq Ft

10993
sq ft

Plan Bedrooms

5
Beds

Plan Bathrooms

7
Baths

Plan Floors

2
Floors

Plan Garages

4
Garages

Plan Description


This Tuscan style two story mansion house plan will create a tremendous curiosity and curbside appeal from its secretly hidden motor court and four-car garage to the elegance of the massive entry system embellished with stone and rod iron. This home plan is appointed with the finest of details from its massive rooms with spectacular ceiling designs to its built-in bookshelves, archways, niches and entertainment systems. The formal living and dining rooms are adorned with detail and grace, such as the beautifully appointed walk-in wet bar. The master suite has an awesome built-in at the bed wall with dual columns and archway, and a large sitting area with view of the pool. This suite also has very large walk-in closets and bath featuring garden tub, walk-in shower and separate vanities. The family room, dinette, and gourmet kitchen are perfect for family gatherings in this Tuscan House Plan. Entering the lanai, you will find yourself in your own backyard paradise. The pool has an array of water features that are sure to put your mind at ease. The covered lanai also hosts a large sports bar and grill perfect for pampering your family and friends. Take either the elevator or the circular stair to the second floor. Upstairs you will find a fully automated theater room, 3 bedrooms 3 bathrooms and a loft with wet-bar overlooking the family room. A truly custom designed house plan to meet all your expectations!

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

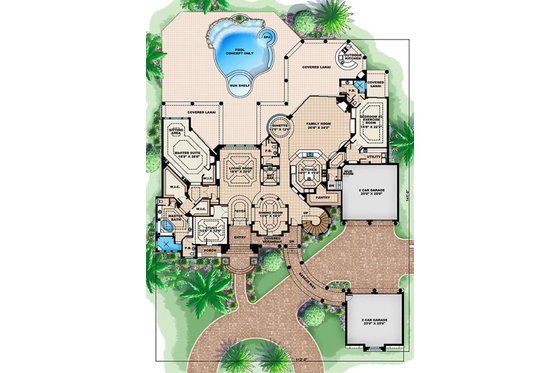

Floor Plan - Main Floor

houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

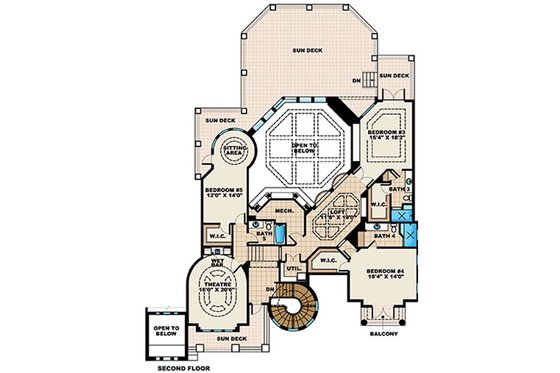

Floor Plan - Upper Floor

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 7
Stories: 2
Garages: 4

Dimension

Depth : 141' 2"
Height : 36' 2"
Width : 112' 2"

Area

Total : 10993 sq/ft
Decks : 85 sq/ft
Garage : 726 sq/ft
Main Floor : 4993 sq/ft
Patios : 1458 sq/ft
Upper Floor : 2391 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Double Coffer, flat
Main Ceiling : 14' 8"
Upper Ceiling Ft : 27' 6"

Roof

Primary Pitch : 5:12
Roof Framing : Manufactured Trusses
Roof Type : Cement Tile

Exterior Wall Framing

Exterior Wall Finish : stucco, keystone
Framing : CMU, 2x6 wood

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Loft
Main Floor Laundry
Master Sitting Area
Mud Room
Storage Area
Upstairs Laundry
Wet Bar

Garage Features

Detached Garage
Front Entry Garage
Split Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Breezeway
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill

More

Jack & Jill Bath
Suited For Vacation Home
Wheelchair Adaptable

What's included in this plan set


See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

* See important information before purchasing

Pricing


Plan Options

CAD Set

$7892.85
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set

Best Value!
$7892.85
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$7892.85
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Audio Video Design

$85.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
