Plan #486-1

Key Specs


  • 1366 sq ft

  • 3 Bedrooms

  • 2 Bathrooms

  • 2 Floors

  • No Garage

Plan Description

The Mossberg is a shotgun style home that incorporates the strength, energy efficiency and quick assembly typical of well designed SIP homes. The 22' x 48' footprint will fit most urban lots. The 1,498 sq. ft. plan offers three large bedrooms and 2 full baths with a modern open feel. The neighborhood friendly wrap around porch adds to the convenient side entry. In addition to our complete "Ready to Assemble" SIP package we offer a framing package, widows and doors and a Superior Wall pre-cast foundation system. Call us for pricing on these extras.

Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

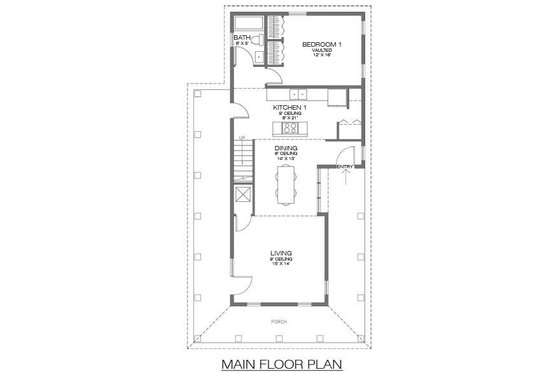

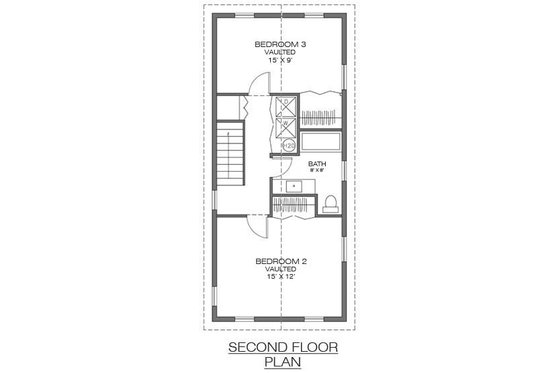

Floor Plan - Main Floor Plan Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Potential Bedrooms : 0
Stories : 2
Baths : 2
Bedrooms : 3
Garage Stalls : 0

Dimension

Width : 22'
Height : 25'
Depth : 48'

Area

Porch Sq Ft : 520 sq ft
Total Sq Ft : 1366 sq ft *
Upper Floor Sq Ft : 533 sq ft
Main Floor Sq Ft : 833 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling Ft : 9'

Roof

Primary Pitch : 3:12
Secondary Pitch : 6:12
Roof Framing : joist

Exterior Wall Framing

Framing : SIP

Bedroom Features

Upstairs Bedrooms
Main Floor Master Bedroom

Additional Room Features

Family Room Keeping Room
Upstairs Laundry

Outdoor Spaces

Wrap Around Porch

Energy Efficient Features

Sip

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

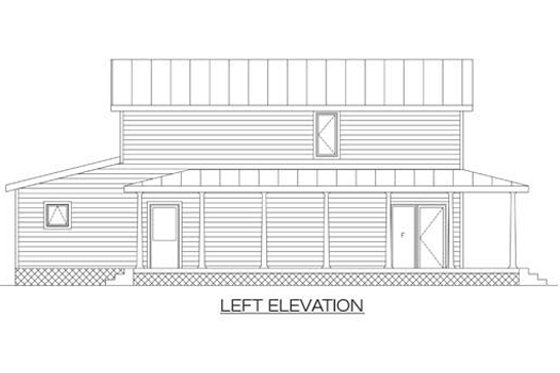

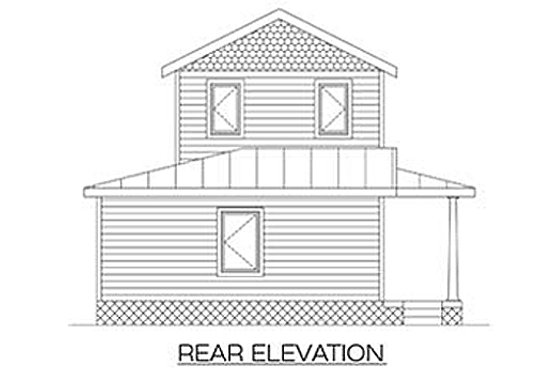

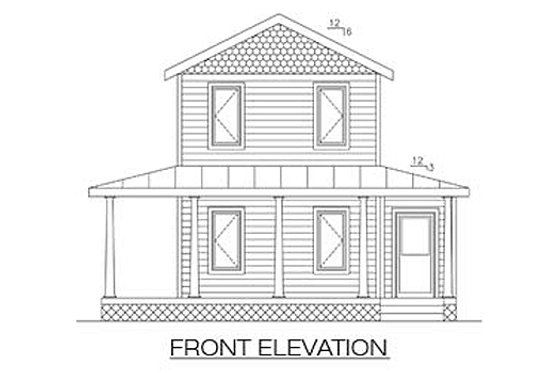

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing

Plan Options
PDF Set Best Value! $725.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set $1250.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options
Crawlspace $0.00 Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.
