Plan #17-2018

Key Specs


  • 1374 sq ft

  • 3 Bedrooms

  • 2 Bathrooms

  • 2 Floors

  • No Garage

Floor Plans

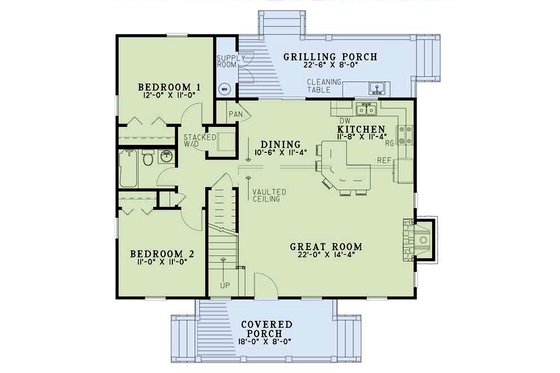

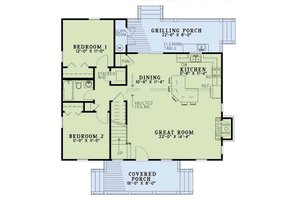

Main Floor Plan
Saved! Cottage Style House Plan - 3 Beds 2 Baths 1374 Sq/Ft Plan #17-2018 Main Floor Plan - Houseplans.com
Upper Floor Plan
Saved! Cottage Style House Plan - 3 Beds 2 Baths 1374 Sq/Ft Plan #17-2018 Upper Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Potential Bedrooms : 0
Stories : 2
Baths : 2
Garage Stalls : 0
Bedrooms : 3

Dimension

Width : 40'
Depth : 42'
Height : 23'

Area

Main Floor Sq Ft : 1070 sq ft
Total Sq Ft : 1374 sq ft
Upper Floor Sq Ft : 304 sq ft
Porch Sq Ft : 347 sq ft

Ceiling

Upper Ceiling Ft : 8'
Main Ceiling Ft : 8'

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Upstairs Master Bedrooms
Main Floor Bedrooms

Kitchen Features

Peninsula Eating Bar

Additional Room Features

Great Room Living Room

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch
Loft Balcony
Covered Rear Porch

More

Suited For Vacation Home

What's included in this plan set

  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

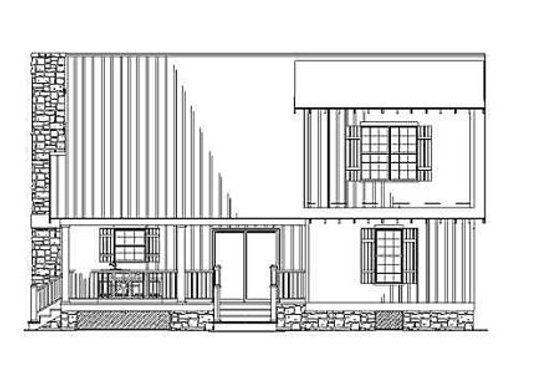

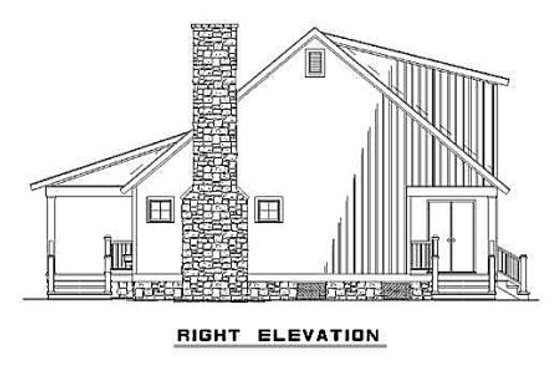

  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.

Pricing

Plan Set Price

5 Copy Set
$580.00
8 Copy Set
$650.00
PDF Set
$1000.00
Reproducible Set
$1000.00
CAD Set
$1540.00
Single Set
$530.00

Foundation Price

Crawlspace
+$0.00
Slab
+$0.00
Basement
+$250.00
Daylight Basement
+$250.00

Additional Construction Sets $50.00/each

Right-Reading Reverse $150.00

Material List $140.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
