  • Plan 100-417

  • 1451 sq ft
  • 3 beds
  • 2.5 baths
  • 38' wide
  • 39' deep
more details
Houzz
Email Print

Floor Plans

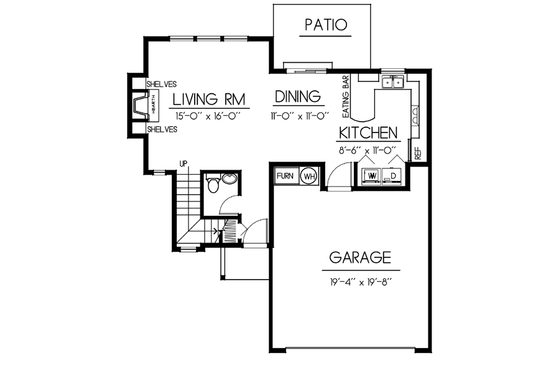

Main Floor Plan

Saved! Craftsman Style House Plan - 3 Beds 2.5 Baths 1451 Sq/Ft Plan #100-417 Main Floor Plan - Houseplans.com

Upper Floor Plan

Saved! Craftsman Style House Plan - 3 Beds 2.5 Baths 1451 Sq/Ft Plan #100-417 Upper Floor Plan - Houseplans.com

Specifications

Kitchen Features

Peninsula Eating Bar

Lot Characteristics

Suited For Narrow Lot
Suited For View Lot

Area

Upper Floor Sq Ft
781 sq ft
Garage Sq Ft
422 sq ft
Total Sq Ft
1451 sq ft
Main Floor Sq Ft
670 sq ft

Ceiling

Main Ceiling Ft
8'
Upper Ceiling Ft
8'

Dimension

Height
24'
Depth
39'
Width
38'

Bedroom Features

Walk In Closet
Upstairs Master Bdrm

More

Economical To Build

Basic Features

Bedrooms
3
Baths
2.5
Garage Stalls
2
Potential Bedrooms
0
Stories
2

Roof

Primary Pitch
7:12

Exterior Wall Framing

Framing
2"x6"

Pricing

Plan Set Price

PDF Set
$725.00
Reproducible Set
$800.00
5 Copy Set
$825.00
8 Copy Set
$875.00
CAD Set
$1300.00

Foundation Price

Crawlspace
+$0.00
Slab
+$150.00
Basement
+$250.00
Daylight Basement
+$350.00

Additional Construction Sets $50.00/each

Right-Reading Reverse $150.00

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Plan Content

  • Elevations drawn at 1/4" = 1'-0" scale, and includes:
    Material labels
    Floor-to-floor heights
    Roof slope indicators
    Attic ventilation notes
  • Floor Plans drawn at 1/4" = 1'-0" scale, and includes:
    All post and beam locations
    Door and window sizes
    Complete and accurate dimensions
    Room labels and interior room sizes
    Electrical layouts
    Code-related notes
    Building section markers
    Floor joist type, spacing and direction
  • Foundation or Basement Plan drawn at 1/4" = 1'-0" scale, and includes:
    All post and beam locations
    Door and window sizes
    Complete and accurate dimensions
    All foundation wall and footing sizes
    Code-related notes
    Building section markers
    Floor and deck joist type, spacing and direction
    Mechanical equipment location
    Electrical layouts
  • Roof Plan drawn at 1/4" = 1'-0", and includes:
    All beam and header locations
    Building section markers
    Code-related notes
    All necessary notes pertaining to the structural system
  • Building Sections drawn at 1/4" = 1'-0" scale, and includes:
    Beam connections and locations
    Floor joist type and spacing
    Floor-to-floor heights
    Non-typical plate heights indicated
  • Typical wall sections drawn at 1/2" = 1'-0" scale, and includes:
    All labels indicating wall construction
    Foundation wall thickness and minimum reinforcing
    Insulation type and rating
  • Miscellaneous Notes and Details: Including miscellaneous framing details, stairway details and general notes covering code requirements for residential construction

Cost-to-Build

To help you determine if this plan will fit within your budget, our Cost-to-Build™ report will provide you a location specific Cost-to-Build™, which is based on your zip code. Order a Cost-to-Build™ Report today to get an accurate, location specific construction cost for any house plan on Houseplans.com. It's a great way to budget your project and compare different plans. It's an easy process and one of our expert plan advisors will take you through a comprehensive interview to determine the materials, finishes, fixtures and more to help you know in advance the likely cost to build a new home from Houseplans.com's blueprints.

Cost-to-Build Report

Best Price Policy

Some of our plans are also available on other websites and in printed catalogs. We are committed to selling these plans at or below the lowest price available elsewhere. If you find a regularly priced plan (not “on-sale”) for a lower price, we'll beat the advertised price by 5%. We will match the price for any on-sale plans.

More details »
