Plan #434-14

Key Specs

  • 1534 sq ft

  • 3 Bedrooms

  • 2 Bathrooms

  • 1 Floor

  • 2 Garage

Plan Description

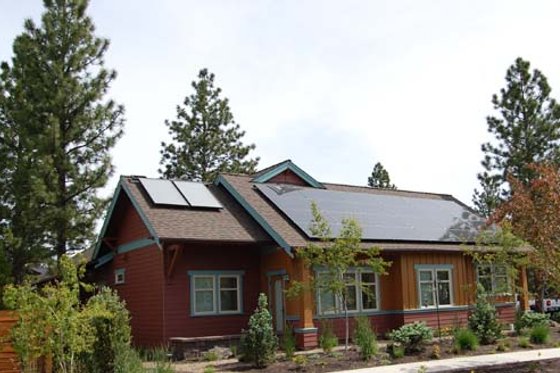

This home encompasses energy efficiency thru advanced framed at the exterior envelope. Wall R-values are increased thru thicker exterior walls, increased roof truss heel heights, and higher U-values at windows/ doors. The built home is complimented with 5.5kw solar electric and solar thermal collectors. The home design and appliance/ equipment compliment this Net Zero home.

Floor Plans

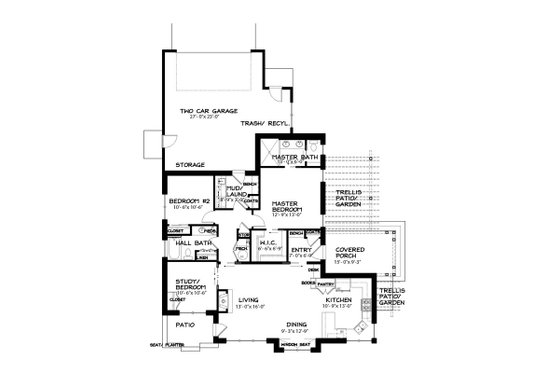

Main Floor Plan
Saved! Craftsman Style House Plan - 3 Beds 2 Baths 1534 Sq/Ft Plan #434-14 Main Floor Plan -

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Baths : 2
Bedrooms : 3
Potential Bedrooms : 3
Garage Stalls : 2
Stories : 1


Width : 46'
Depth : 65'
Height : 21'


Porch Sq Ft : 144 sq ft
Storage Sq Ft : 60 sq ft
Patios Sq Ft : 161 sq ft
Garage Sq Ft : 563 sq ft
Total Sq Ft : 1534 sq ft
Main Floor Sq Ft : 1534 sq ft


Garage Ceiling Ft : 10'
Ceiling Details : Flat Ceilings w/ Vaulted Options
Main Ceiling Ft : 9'


Roof Framing : Truss
Primary Pitch : 8:12
Roof Load : 25
Roof Type : Composition
Secondary Pitch : 3:12

Exterior Wall Framing

Wind Rating : 85
Exterior Wall Finish : Lap Siding/ Board & Batten
Seismic Rating : C
Insulation : R-40
Framing : 12" Thick Advanced Framing

Bedroom Features

Main Floor Master Bedroom
Walk In Closet
Split Bedrooms
Main Floor Bedrooms

Kitchen Features

Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Breakfast Nook

Additional Room Features

Den Office Study Computer
Mud Room
Main Floor Laundry
Great Room Living Room
Storage Area

Garage Features

Rear Garage
Front Entry Garage
Garage Under

Lot Characteristics

Suited For Narrow Lot
Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Grill Deck Sundeck
Covered Front Porch
Wrap Around Porch


Suited For Vacation Home
Empty Nester

Code Compliance

Irc 2006

Structural Information Provided

Structural Roof Framing
Foundation Drawing
Structural Notes

Energy Efficient Features

Energy Efficient Design
Passive Solar Systems
Passive Water Systems
Green Specifications

What's included in this plan set

Please note: This plan is unavailable in the following zip codes: 97701, 97702.

The typical plan set will include:

  • Cover Sheet
  • General Notes
  • Energy Notes
  • Energy Detail; drawings
  • Foundation Plan: 1/4" - 1'0"
  • Main and Upper Level Floor Framing: 1/4" - 1'0"
  • Main and Upper Level Floor Plan: 1/4" - 1'0"
  • Roof Framing Plan: 1/4" - 1'0"
  • Building Sections: 1/4" - 1' 0"
  • Typical Wall Section: 1/2" - 1' 0"
  • Exterior Elevations
  • Exterior Details
  • Electrical switch and outlet plan: 1/4" - 1'0"


Plan Set Price

5 Copy Set
8 Copy Set
Reproducible Set
Single Set

Foundation Price

Pier Post Beam

Additional Construction Sets $50.00/each

Mirror Reverse Sets $100.00/each

Right-Reading Reverse $300.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $750.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
or call to order: 1-800-913-2350
