Plan #124-860

Key Specs


  • 1590 sq ft

  • 3 Bedrooms

  • 2.5 Bathrooms

  • 2 Floors

  • 2 Garage

Plan Description

While this compact ranch-style cottage is designed to sit on land that slopes down at the rear, minimal changes would allow construction on level ground. Vaulted ceilings in the great room, dining room and owners' suite increase the overall sense of spaciousness. Flames in the great room's fireplace can also be enjoyed from the kitchen.

Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

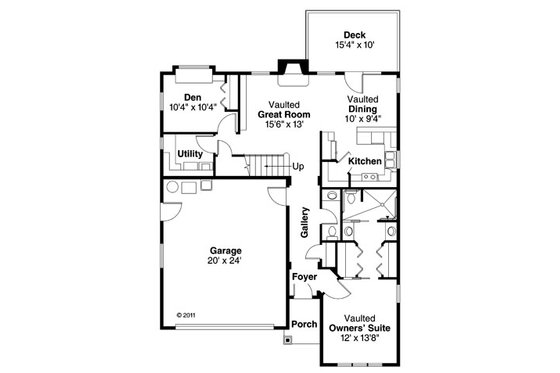

Floor Plan - Main Floor Plan
Saved! Traditional Style House Plan - 3 Beds 2.5 Baths 1590 Sq/Ft Plan #124-860 Floor Plan - Main Floor Plan - Houseplans.com
Floor Plan - Upper Floor Plan
Saved! Traditional Style House Plan - 3 Beds 2.5 Baths 1590 Sq/Ft Plan #124-860 Floor Plan - Upper Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Potential Bedrooms : 0
Stories : 2
Baths : 2.5
Bedrooms : 3
Garage Stalls : 2

Dimension

Width : 39'
Height : 21'
Depth : 50'

Area

Total Sq Ft : 1590 sq ft *
Garage Sq Ft : 505 sq ft
Upper Floor Sq Ft : 387 sq ft
Main Floor Sq Ft : 1203 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling Ft : 8'

Roof

Roof Load : 25
Primary Pitch : 6:12
Roof Framing : Truss

Exterior Wall Framing

Framing : 2"x6"
Exterior Wall Finish : siding/stone

Bedroom Features

Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Main Floor Master Bedroom

Kitchen Features

Breakfast Nook
Peninsula Eating Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry
Den Office Study Computer

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch
Grill Deck Sundeck

More

Empty Nester

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing

What's included in this plan set

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
