Bungalow House Plan 118-132

Key Specs


Plan Sq Ft

1626
sq ft

Plan Bedrooms

0
Beds

Plan Bathrooms

1
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Questions? Get Personalized Help
Select Plan Set Options
What's included?
$127.50
$33.15
$59.50
Subtotal
NOW $463.25
You save $81.75
(15% savings)
Sale ends soon!
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Questions? Get Personalized Help



Hours: Mon - Fri 8:30 - 8:30 (EDT)

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Key Specs


Plan Sq Ft

1626
sq ft

Plan Bedrooms

0
Beds

Plan Bathrooms

1
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Plan Description


The oversized 18’ wide by 10’ high overhead garage door and 11’-6” ceiling height makes this a truly versatile RV Garage space. The spacious open workshop has ample workbench length with numerous upper storage cabinets and is well lit with the rear facing window location. The unfinished second level with vaulted ceilings is intentionally left undeveloped to allow your personalization of this space. A shed dormer contains a bathroom conveniently located at the top of the uniquely designed staircase.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

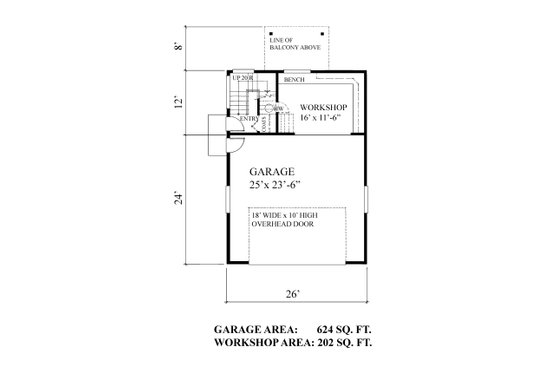

Floor Plan - Main Floor

houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

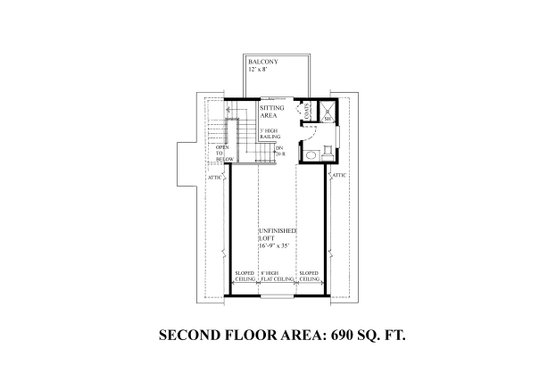

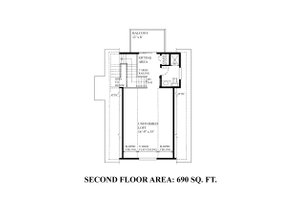

Floor Plan - Upper Floor

Full Specs & Features


Basic Features

Bedrooms : 0
Baths : 1
Stories: 2
Garages: 2

Dimension

Depth : 44'
Height : 25' 8"
Width : 26'

Area

Total : 1626 sq/ft
First Floor: 114 sq/ft
Garage: 624 sq/ft
Second Floor: 690 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Upper Bonus room has 4' knee walls.
Main Ceiling : 11'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 10:12
Roof Framing : Stick / Truss
Roof Load : 32
Roof Type : Metal
Secondary Pitch : 4:12

Exterior Wall Framing

Exterior Wall Finish : Horizontal and Vertical Siding
Framing : 2x6

Garage Features

RV Garage

Rooms

Entry:

114 sq/ft

Garage:

624 sq/ft width 25' x depth 23' 6"

Loft:

16 sq/ft width 11' 11" x depth 0"

Workshop:

198 sq/ft width 16' x depth 11' 6"

What's included in this plan set


See a sample plan set
  • Cover sheet with rendering and art floor plans
  • General notes and specifications
  • Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
  • Foundation plan at 1/4″=1′-0″
  • Main floor plan at 1/4″=1′-0″
  • Second floor plan at 1/4″=1′-0″, if applicable
  • Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
  • Electrical floor plans
  • Minimum of two cross sections at 1/4″=1′-0″
  • Details as required
  • All four elevations at 1/4″=1′-0″
  • Generic detail sheet
  • Plans are engineered by a structural engineer, but not stamped or sealed
  • Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
  • Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
  • Assumed soil bearing capacity 1560 psf
  • Electrical fixtures / switches / smoke alarms by location only on floor plans
  • Plumbing fixtures by location only on floor plans
  • Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations
