Plan #23-2294

Key Specs


  • 1676 sq ft

  • 2 Bedrooms

  • 1 Bathroom

  • 1 Floor

  • 2 Garage

Floor Plans

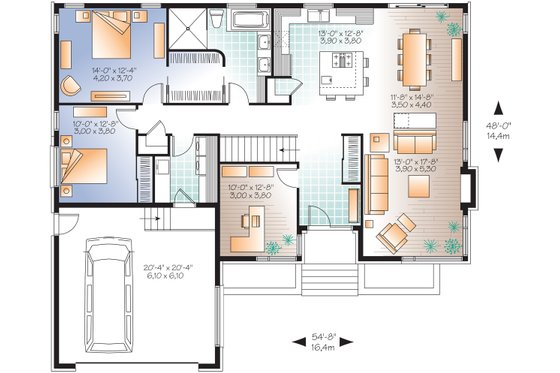

Floor Plan - Main Floor Plan
Saved! Contemporary Style House Plan - 2 Beds 1 Baths 1676 Sq/Ft Plan #23-2294 Floor Plan - Main Floor Plan - Houseplans.com

Customize This Plan

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Baths : 1
Garage Stalls : 2
Bedrooms : 2
Stories : 1

Dimension

Width : 54' 8"
Depth : 48'
Height : 20' 10"

Area

Main Floor Sq Ft : 1676 sq ft
Garage Sq Ft : 469 sq ft
Total Sq Ft : 1676 sq ft

Exterior Wall Framing

Framing : 2x6

Kitchen Features

Kitchen Island
Peninsula Eating Bar

Garage Features

Front Entry Garage

What's included in this plan set

Exterior Elevations (front, rear, left & right sides) typically include:

  • Floor and ceiling heights
  • Dimensions of standard windows
  • Dimensions of roof overhangs
  • Location of all needed flashings
  • Height and location of foundation indicated in dashed lines
  • Type of finishing and textures
  • Dimension and height of chimney
Foundation plans typically include:

  • All exterior and interior dimensions
  • Thickness of foundation walls (if variable)
  • All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location
  • Location of stairwell
  • Location and sizes of windows
  • Location and dimensions of footings (where applicable and required)

Floor plan(s) typically include:

  • All interior and exterior dimensions
  • Location and sizes of doors and windows
  • Types of interior doors that correspond to a schedule
  • Indication of the structure above (second floor or roof)
  • Location of columns, beams and floor joists, including dimensions
  • Indication of details that are available on other pages
Roof plans typically include:

  • Location of all the different trusses needed
  • The general overcharge of the roof compared to the floor footprint underneath
  • Location of ridges and valleys

Building cross-section(s) and truss details typically include:

  • All the different floor and ceiling heights
  • Dimensions and design of trusses
  • Dimensions and details of overhand
  • Roof pitch on all truss sections

Construction details typically include:

  • Roof sections
  • Sections of concrete wall with wood connection
  • Section of walls with particulars called out
  • Section of concrete porch and connection with wood frame
  • Foundation particulars in the garage entrance
  • Components of certain types of walls (ex: between garage and living quarters)

Typical wall sections typically include;

  • All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
*See important information before purchasing

Pricing

Plan Options
5 Copy Set $789.00 5 printed plan sets mailed to you.
8 Copy Set $819.00 8 printed plan sets mailed to you.
PDF Set Best Value! $969.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $969.00 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set $1539.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options
Basement +$0.00 Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Additional Copies $50.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse $150.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.
Material List $120.00 A list of building supplies needed to construct the infrastructure of your new house. Click here for more information.
