1787 sq ft
This striking and distinctive ranch includes all the frills. From the
inviting front porch to the screen porch and deck, this home provides
dramatic spaces, luxurious appointments, and spacious living areas. Its
carefully designed 1787 square feet provide the feel and features of a
much larger home. The bonus room and basement provide plenty of space
for expansion, so this home is one that won't soon be outgrown.
Just beyond the porch is an entry with 11' high ceilings. To the left is the dining room open to the entry and family room, also with an 11' high ceiling. Stairs to the bonus room are directly off the family room. The kitchen is open and provides both a breakfast and serving bar. The dramatic master suite is loaded with amenities such as a double step tray ceiling, direct access to the screen porch, a sitting room, deluxe bath, and a "his and hers" walk-in closet. The 13'x12' secondary bedrooms share a second bath. Unless otherwise noted, the ceilings are 9' high.
Ceiling height in Bonus Room is 8 ft. with 5 ft. knee walls.
Other Room Dimensions:
Master Bath: 8'6" x 12'6" (includes toilet stall)
Master Closet (His): 6'0" x 5'0"
Master Closet (Hers): 6'6" x 5'0"
Materials list is delivered in electronic Excel file format for easy revision.
If ordering an alternate crawlspace or slab foundation option the foundation page will be changed but all other drawings will still reflect the original basement details. Only the foundation page is replaced. Please contact our sales team if you have any questions.

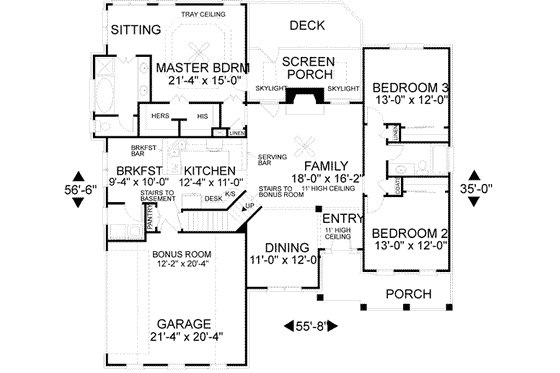

Floor PlansMain Floor Plan
Customize any features!
Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.Get Free Quote
Full Specs & Features
Exterior Wall Framing
Additional Room Features
What's included in this plan set
- Artist Rendering

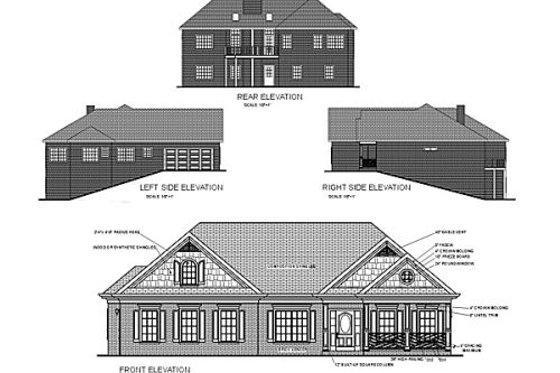

- Exterior Elevations: All four sides
- Floor Plans(s)
- Foundation Plan
- Cross Sections
- Cabinet Elevations
- Roof Plan
- 3D Overview: most but not all plans by this designer are offered with a 3D overview. If this is important to you please contact one of our project advisors for verification.
- Electrical Drawings: Most plans Detail Sheets: Includes general specifications, not specific to individual plans.
Plan Set Price
Additional Construction Sets $40.00/each
Right-Reading Reverse $175.00
Material List $125.00
The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).
Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.
All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.
All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.
In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.
To find out what documents you should expect with your house plans, see what's included?
In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.
Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
How much will this cost to build?
This plan can be modified!
