Plan #51-518

Key Specs

  • 1857 sq ft

  • 3 Bedrooms

  • 2 Bathrooms

  • 1 Floor

  • 2 Garage

Floor Plans

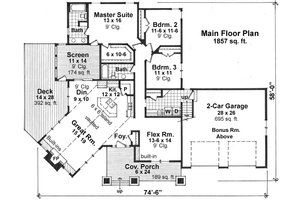

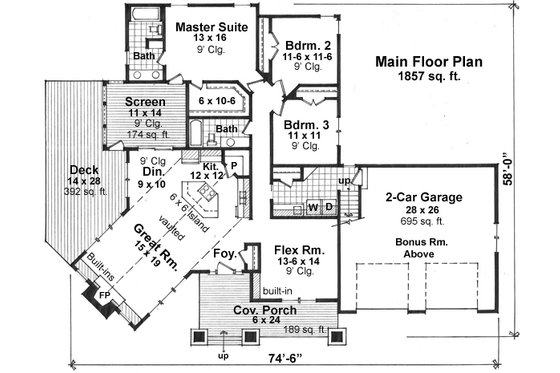

Main Floor Plan
Saved! Craftsman Style House Plan - 3 Beds 2 Baths 1857 Sq/Ft Plan #51-518 Main Floor Plan -

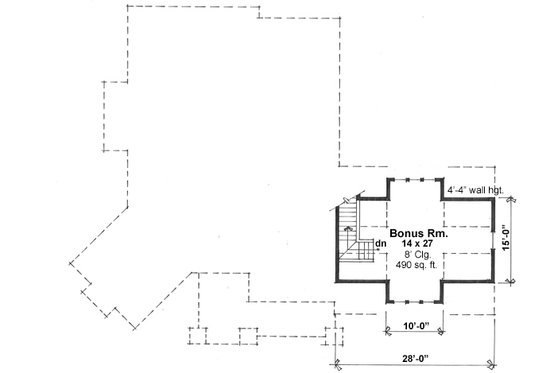

Other Floor Plan
Saved! Craftsman Style House Plan - 3 Beds 2 Baths 1857 Sq/Ft Plan #51-518 Other Floor Plan -

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Garage Stalls : 2
Baths : 2
Stories : 1
Bedrooms : 3
Potential Bedrooms : 4


Depth : 58'
Height : 27'
Width : 75'


Main Floor Sq Ft : 1857 sq ft
Bonus Sq Ft : 490 sq ft
Total Sq Ft : 1857 sq ft
Garage Sq Ft : 695 sq ft


Bonus Ceiling Ft : 8'
Main Ceiling Ft : 9'


Roof Framing : Trusses
Primary Pitch : 9:12
Secondary Pitch : 12:12

Exterior Wall Framing

Framing : 2"x6"

Bedroom Features

Walk In Closet
Main Floor Master Bedroom
Main Floor Bedrooms

Kitchen Features

Walk In Pantry Cabinet Pantry
Kitchen Island

Additional Room Features

Main Floor Laundry
Family Room Keeping Room
Great Room Living Room
Den Office Study Computer
Mud Room
Hobby Rec Room Game Room
Unfinished Future Space

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Rear Porch
Covered Front Porch
Screened Porch Sunroom
Grill Deck Sundeck


Suited For Vacation Home
Empty Nester
Unusual Shape

Structural Information Provided

Structural Notes
Foundation Drawing

What's included in this plan set

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
  • Note: These plans will not contain an electrical layout.


Plan Set Price

5 Copy Set
Reproducible Set
8 Copy Set
Single Set

Foundation Price


Additional Construction Sets $50.00/each

Right-Reading Reverse $200.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $1160.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
or call to order: 1-800-913-2350
