Plan #116-293

Key Specs


  • 1879 sq ft

  • 3 Bedrooms

  • 2.5 Bathrooms

  • 2 Floors

  • 2 Garage

Plan Description

This Southwestern Style home features three bedrooms, two full baths . The island Kitchen is complete with a Breakfast nook that opens to the living room through an arched doorway. The large Living room opens onto a spacious walled Patio for easy entertaining. The Secondary bedrooms share a full hallway entry bath . The Private Master Suite on the Upper Level features a Spa Bath complete with a walk-in-closet. The Exercise room off the Master suite is enhanced with Skylight. Plan includes optional Active Solar Details.

Floor Plans

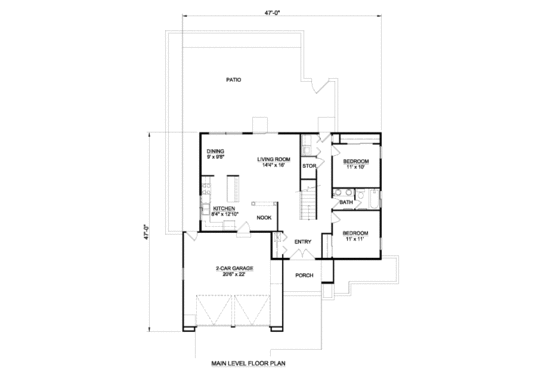

Main Floor Plan
Saved! Adobe / Southwestern Style House Plan - 3 Beds 2.5 Baths 1879 Sq/Ft Plan #116-293 Main Floor Plan - Houseplans.com

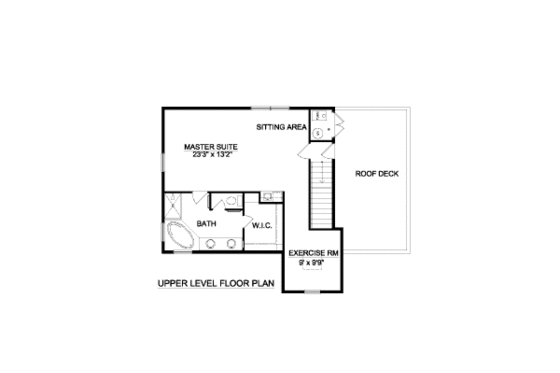

Upper Floor Plan
Saved! Adobe / Southwestern Style House Plan - 3 Beds 2.5 Baths 1879 Sq/Ft Plan #116-293 Upper Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Garage Stalls : 2
Baths : 2.5
Stories : 2
Bedrooms : 3
Potential Bedrooms : 0

Dimension

Depth : 47'
Height : 21'
Width : 47'

Area

Main Floor Sq Ft : 1186 sq ft
Total Sq Ft : 1879 sq ft
Upper Floor Sq Ft : 693 sq ft
Garage Sq Ft : 514 sq ft
Porch Sq Ft : 67 sq ft

Ceiling

Upper Ceiling Ft : 8'
Main Ceiling Ft : 8'

Roof

Roof Framing : Truss
Roof Load : 30 psi

Exterior Wall Framing

Framing : 2"x6"
Insulation : Exterior R-13, Ceiling R-38

Bedroom Features

Walk In Closet
Split Bedrooms
Upstairs Master Bedrooms
Teen Suite Jack Jill Bath
Main Floor Bedrooms

Kitchen Features

Breakfast Nook
Peninsula Eating Bar

Additional Room Features

Hobby Rec Room Game Room
Storage Area
Master Sitting Area

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot

Outdoor Spaces

Courtyard

Code Compliance

Irc 2006

Energy Efficient Features

Green Specifications

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Set Price

5 Copy Set
$625.00
8 Copy Set
$725.00
Reproducible Set
$900.00
CAD Set
$1250.00

Foundation Price

Crawlspace
+$0.00
Slab
+$0.00

Additional Construction Sets $50.00/each

Mirror Reverse Sets $0.00/each

Right-Reading Reverse $50.00

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.
