  • Plan 534-2

  • 2083 sq ft
  • 3 beds
  • 2 baths
  • 59' wide
  • 65' deep
more details
Houzz
Email Print

Floor Plans

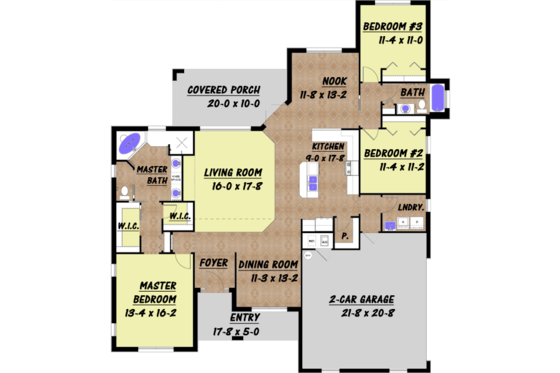

Main Floor Plan

Specifications

Basic Features

Baths
2
Garage Stalls
2
Stories
1
Bedrooms
3

Area

Garage Sq Ft
532 sq ft
Main Floor Sq Ft
2083 sq ft
Porch Sq Ft
190 sq ft
Total Sq Ft
2083 sq ft

Roof

Primary Pitch
6:12
Roof Load
Fiberglass Shingle
Secondary Pitch
12:12
Roof Framing
Trusses

Bedroom Features

Walk In Closet
Main Floor Bedrooms
Main Floor Master Bedroom

Additional Room Features

Main Floor Laundry
Great Room Living Room

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Dimension

Depth
65'
Width
59'

Ceiling

Garage Ceiling Ft
8'
Ceiling Details
All ceilings 9'4" flat unless noted otherwise: Living Room, Dining Room, and Kitchen - vaulted ceiling; Garage - 8'0" flat.
Main Ceiling Ft
9'

Exterior Wall Framing

Exterior Wall Finish
Cementitious finish

Kitchen Features

Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry

Garage Features

Side Entry Garage

More

Economical To Build

Pricing

Plan Set Price

5 Copy Set
$1250.00
Reproducible Set
$1350.00
CAD Set
$4250.00
Single Set
$600.00

Foundation Price

Slab
+$0.00

Additional Construction Sets $30.00/each

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Plan Content

  • COVER SHEET, INDEX & CUTOUTS FOR SITE PLAN — This page includes a drawing that illustrates how the front of your new home should look once construction is complete. It also contains information needed by your building contractor, such as standard abbreviations found in the construction documents. There will also be drawings that can used by a third party to complete the site plan for your project.
  • EXTERIOR ELEVATIONS — The exterior elevation drawings illustrate how your home will look from four sides (Front, Rear, Left & Right Sides). Additional auxiliary drawings will be included if determined necessary by the designer. Exterior details and relevant notes will also be included.
  • FLOOR PLAN — The floor plan shows the layout and room arrangement for each floor of your project. It also includes relevant information such as square footage calculations, window & door sizes, detailed dimensions, and notes.
  • FOUNDATION LAYOUT PLAN — This drawing shows the overall dimensions for your new home and includes dimensions to plumbing fixtures for easier location during construction. As this is only a layout, foundation specifications will be added by your local structural engineer as part of their services.
  • ELECTRICAL PLAN — The locations of electrical components such as light fixtures, switches, outlets, and smoke detectors are shown on this page of the construction documents for your project. This plan also includes a proposed location for the electrical meter and main electrical service.
  • ROOF LAYOUT PLAN — The roof layout page illustrates the locations of peaks, valleys, ridges, attic vents, and roof pitches. This information is needed by the truss company your contractor uses to design and supply the pre-assembled roof trusses for your project.
  • INTERIOR DETAILS — Details will be drawn as necessary to clarify interior design details and provide more detail and information for proper construction. These details will either be located on their own page or placed strategically throughout the construction documents.
  • BUILDING SECTION — The building section drawing is a drawing that illustrates a cut through the structure of your project in order to provide more information for proper construction. Relevant notes and dimensions will be included in this drawing.
  • WALL SECTIONS — Typical wall sections illustrate walls commonly found in the design for your project. Relevant notes and dimensions will be included in this drawing.
