2199 sq ft
Multiple gables, stone and siding exterior and a covered entry create a beautiful facade on this one level home. The great room, dining area and spacious kitchen combine to offer a large family gathering place. The placement of the entertainment alcove and fireplace provide a view from all three locations. The three sets of French doors across the rear provide an abundance of light. Additional windows in the dining area are set high to provide space for a sideboard on the outside wall. An eleven foot ceiling height tops the great room and dining area. Generous counter space, cabinetry, an island, and pantry in the kitchen, in addition to the adjacent laundry room and a small home office form an efficient work area. For privacy, the master bedroom suite is separated from the secondary bedrooms and enjoys a 10' ceiling height, and deluxe dressing room with whirlpool tub, double bowl vanity, shower and large walk#45;in closet. A spectacular covered rear porch with fireplace extends the outdoor enjoyment to cooler weather.
This plan can be customized!
Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

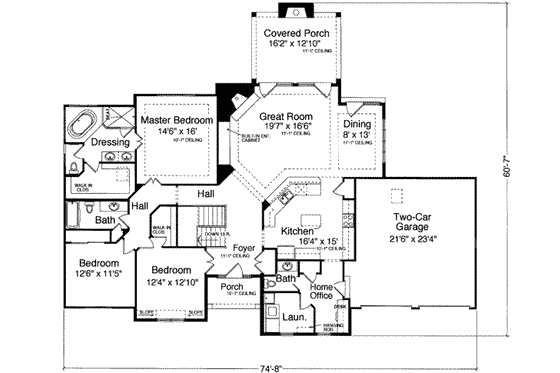

Floor PlansFloor Plan - Main Floor Plan
Full Specs & Features
Exterior Wall Framing
Additional Room Features
What's included in this plan set
- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section show typical framing detail of house.
|5 Copy Set||$675.00||5 printed plan sets mailed to you.|
|8 Copy Set||$775.00||8 printed plan sets mailed to you.|
|Reproducible Set||$775.00||For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.|
|CAD Set||$1300.00||For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Single Set||$550.00||One printed set for bidding purposes only. Not a legal building set.|
|Basement||$0.00||Ideal for level lot, lower level of home partially or fully underground.|
|Additional Copies||$50.00/each||Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Mirror Reverse Sets||$50.00/each||Choose how many sets of the 5 or 8 copy set to mirror. Text and dimensions will be backwards. Click here for more information.|
|Right-Reading Reverse||$150.00||Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.|
|Material List||$85.00||A list of building supplies needed to construct the infrastructure of your new house. Click here for more information.|
