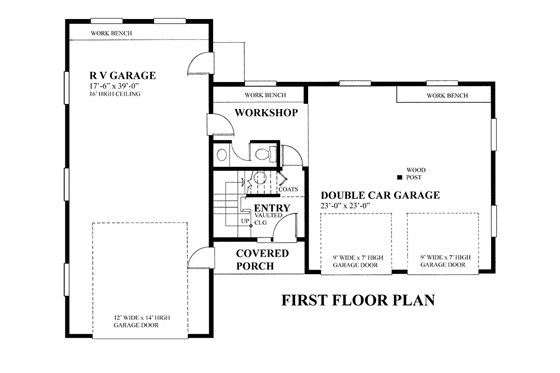

Main Floor Plan
Saved! Houseplans.com Traditional Main Floor Plan Plan #118-128

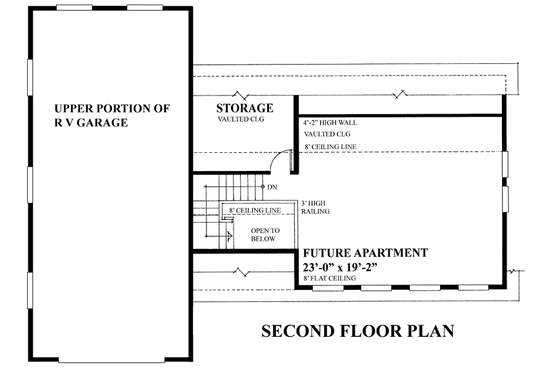

Upper Floor Plan
Saved! Houseplans.com Traditional Upper Floor Plan Plan #118-128

Plan Description

The RV garage portion of this combination garage has a sixteen foot high ceiling accessed though a fourteen foot high by twelve foot wide overhead door. The double car garage has an eight foot high ceiling with two seven foot high by nine foot wide overhead doors.

The covered porch opens into the vaulted entry with direct access to the workshop which contains a conveniently located half bathroom. The workshop provides easy access to both the RV and double car garage areas. Add a wall between the workshop and double garage to heat this space if required.

The second level is a blank canvas ready to be transformed into a future apartment, exercise room or private home office.

Plans are designed with a concrete slab foundation plan.

Specifications

Plan Styles
Traditional
Additional Rooms
Hobby Rec Room Game Room
Bonus Play Flex Room
Unfinished Future Space
Exercise Room
Workshop
Storage Area
