Plan #511-1

Key Specs


  • 1 Bedroom

  • 1 Bathroom

  • 1 Floor

  • No Garage

  • 238 sq ft

Plan Description

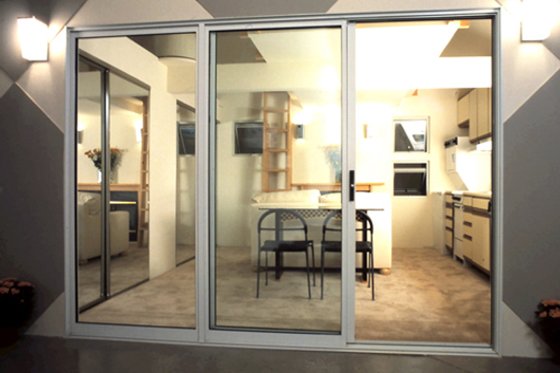

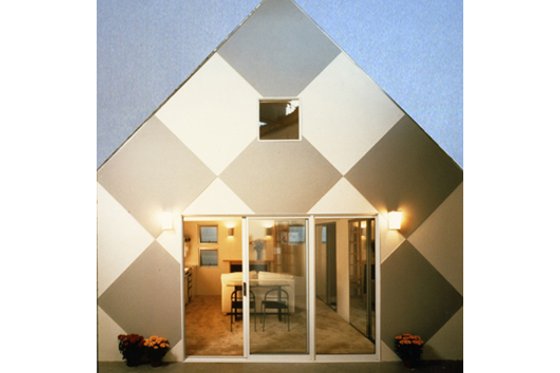

The Starter Home is a one-story, single-room house with a loft that fits into the pitched roof. The footprint is 14 by 17 feet, giving the house a total of 238 square feet. The house has a slab-on-grade foundation and uses conventional wood framing, sliding doors and nail-on windows, finished with painted plywood on the exterior and Sheetrock on the interior walls, with asphalt shingles on the roof (Other exterior finish options are available). The interior space is made to feel larger than it is through the use of architectural techniques. The pitched roof allows for 16'-high ceiling. Two skylights in the roof and wide entrance opening give the room a light and expansive feeling. The closet and bath have sliding mirrored doors that visually enlarge the interior.\ \ The Starter Home was designed as a flexible housing solution for urban and suburban settings. While the Starter Home itself is a quite small, it can be used in large groupings as well. The floor plan layout allows for future expansions by adding more "Starter" units. With minor changes owner can adjust the new additions to different uses important to his lifestyle. It is estimated that the Starter Home would cost between $20,000 -$30,000 to build (price of land not included)

Floor Plans

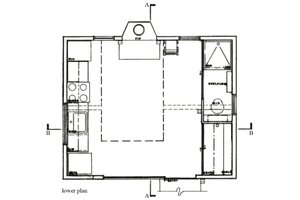

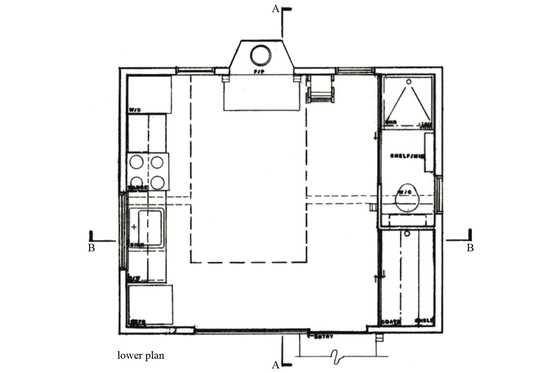

Main Floor Plan
Saved! Cottage Style House Plan - 1 Beds 1 Baths 238 Sq/Ft Plan #511-1 Main Floor Plan - Houseplans.com

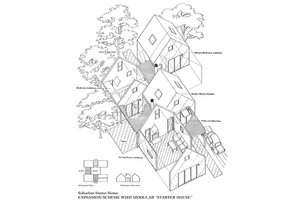

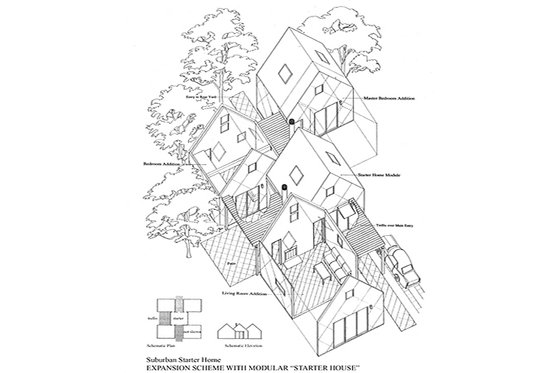

Other Floor Plan
Saved! Cottage Style House Plan - 1 Beds 1 Baths 238 Sq/Ft Plan #511-1 Other Floor Plan - Houseplans.com

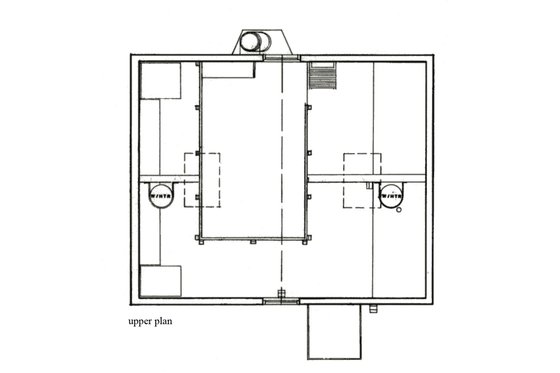

Upper Floor Plan
Saved! Cottage Style House Plan - 1 Beds 1 Baths 238 Sq/Ft Plan #511-1 Upper Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Garage Stalls : 0
Potential Bedrooms : 0
Baths : 1
Stories : 1
Bedrooms : 1

Dimension

Depth : 17'
Width : 14'

Area

Total Sq Ft : 238 sq ft
Main Floor Sq Ft : 238 sq ft

Ceiling

Main Ceiling Ft : 16'

Roof

Primary Pitch : 12:12

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Upstairs Bedrooms

Lot Characteristics

Suited For Narrow Lot
Zero Lot Lines

More

Suited For Vacation Home
Economical To Build

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

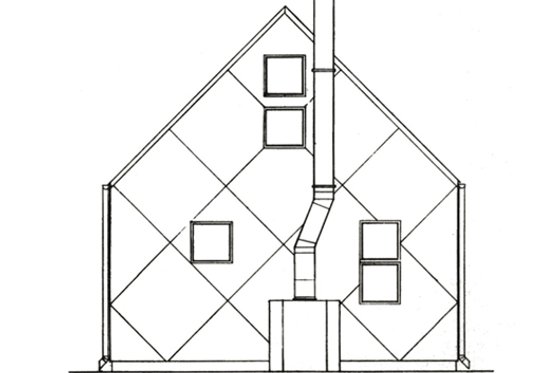

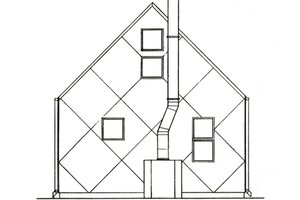

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Set Price

5 Copy Set
$1450.00
PDF Set
$1450.00
Reproducible Set
$1450.00

Foundation Price

Slab
+$0.00

Additional Construction Sets $50.00/each

Mirror Reverse Sets $0.00/each

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Meet the Designer - Donald MacDonald

null - Houseplans.com
“The creative architect casts aside preconceived notions and questions established concepts. The design process becomes visionary rather than reactionary, and innovation takes the place of conventional interpretations. A building, a bridge, any structure must respond to the client, to the users, and to the community. It must be functional, safe, and sensible. And it must be completed on time and within budget.”

Donald MacDonald Architects is known for a diverse AIA award-winning practice, ranging from row housing to major bridge designs, including retrofits for the Golden Gate Bridge and the new eastern-span of the San Francisco-Oakland Bay Bridge. Donald believes that one of today’s most important challenges is to develop housing that is both livable and affordable. His firm has consistently explored the options and found ground-breaking, workable solutions -- for projects from three units to hundreds. His book Democratic Architecture (Whitney Library of Design) spotlights innovative solutions for living on compact sites. His recent book, Golden Gate Bridge: History and Design of an Icon (Chronicle Books) is a fascinating and cleverly illustrated history of the landmark span.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
