Photographs may show modified designs. All images are copyrighted.

  • Plan 124-863
  • 2429 sq ft
  • 3 beds
  • 2.50 baths
  • 68' wide
  • 52' deep
more details
Houzz
Email Print

Plans

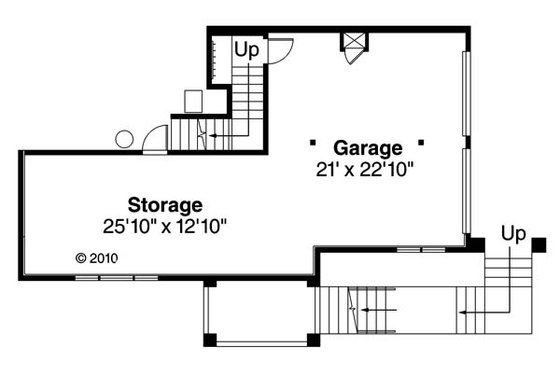

Lower Floor Plan
Saved! Houseplans.com Mediterranean Lower Floor Plan Plan #124-863

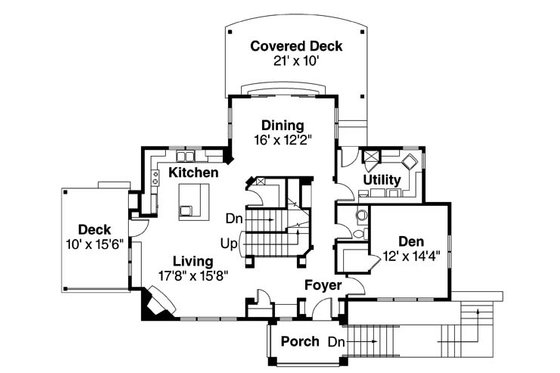

Main Floor Plan
Saved! Houseplans.com Mediterranean Main Floor Plan Plan #124-863
Upper Floor Plan
Saved! Houseplans.com Mediterranean Upper Floor Plan Plan #124-863

Plan Description

Bright tile caps the smooth stucco of this three-level Southwestern-style home, designed for construction on a slope. The living room/kitchen has a fireplace, recessed home entertainment center, and access to a wide side deck. A dining room with windows on three sides is at the rear, and offers sliding door access to a sky-lit covered patio.

Specifications

Plan Styles
Mediterranean
Basic Features
Bedrooms
3
Baths
2.50
Garage Stalls
2
Potential Bedrooms
0
Stories
3
Structural
Structural Roof Framing
Structural 2nd Floor Framing
Structural 1st Floor Framing
Foundation Drawing
Kitchen Features
Peninsula Eating Bar
Nook Breakfast Area Dining
Kitchen Island
Walk In Pantry Cabinet Pantry
Lot Characteristics
Suited For Sloping Lot
Suited For Corner Lot
Suited For View Lot
Designer Notes
Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings.

  • Artist's Rendering - An artist's drawing of the home, usually viewed from the front and general construction notes.
  • Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan - Shows placement and dimensions of walls, doors, & windows: Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor: Includes second floor framing and details.
  • Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
  • Details Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section - Shows a cross-section of the home: Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.
Area
Total Sq Ft
2429 sq ft
Main Floor Sq Ft
1360 sq ft
Upper Floor Sq Ft
1069 sq ft
Garage Sq Ft
945 sq ft
Code
Irc 2006
Ceiling
Main Ceiling Ft
9'
Dimension
Width
68'
Depth
52'
Height
31'
Bedroom Features
Upstairs Bedrooms Bath
Upstairs Master Bdrm
Walk In Closet
Exterior Wall Framing
Exterior Wall Finish
Stucco
Framing
2"x6"
Additional Rooms
Den Office Study Computer
Main Floor Laundry
Master Sitting Area
Great Room Living Room
Storage Area
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
Covered Rear Porch
Roof
Roof Load
25
Roof Framing
Truss
Primary Pitch
5:12
Garage
Side Entry Garage
Garage Under

Pricing

Plan Set Price
5 Copy Set
$825.00
8 Copy Set
$925.00
PDF Set
$1250.00
Reproducible Set
$1250.00
CAD Set
$1875.00
Single Set
$675.00
Foundation Price
Basement
+$0.00
Additional Construction Sets $55.00/each
Right-Reading Reverse $250.00

* The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Plan Content

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.

Cost-to-Build

To help you determine if this plan will fit within your budget, our Cost-to-Build™ report will provide you a location specific Cost-to-Build™, which is based on your zip code. Order a Cost-to-Build™ Report today to get an accurate, location specific construction cost for any house plan on Houseplans.com. It's a great way to budget your project and compare different plans. It's an easy process and one of our expert plan advisors will take you through a comprehensive interview to determine the materials, finishes, fixtures and more to help you know in advance the likely cost to build a new home from Houseplans.com's blueprints.

Cost-to-Build Report

Best Price Policy

Some of our plans are also available on other websites and in printed catalogs. We are committed to selling these plans at or below the lowest price available elsewhere. If you find a regularly priced plan (not “on-sale”) for a lower price, we'll beat the advertised price by 5%. We will match the price for any on-sale plans.

More details »

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $675.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
or call to order: 1-800-913-2350
Ask us about this plan

How much will this cost to build?

This plan can be modified!
