Plan #510-2

Key Specs


  • 2449 sq ft

  • 3 Bedrooms

  • 2.5 Bathrooms

  • 2 Floors

  • 2 Garage

Plan Description

Plan 510-2. White Traditional Farmhouse Modeled after an early 20th century New England farmhouse but modernized with a two car garage and an updated floor plan, this 3 bedroom 2½ bath, 2500 sq. ft. platform frame design includes a vaulted living room, and a spacious breakfast area/home office beside the kitchen. The master suite is upstairs and opens to its own study. The design is slab on grade with radiant heat tubes in the slab. It can be built over a crawlspace or partial basement. Lester Walker is also the author of the extremely useful American Shelter: An Illustrated Encyclopedia of the American Home (Overlook Press).

Floor Plans

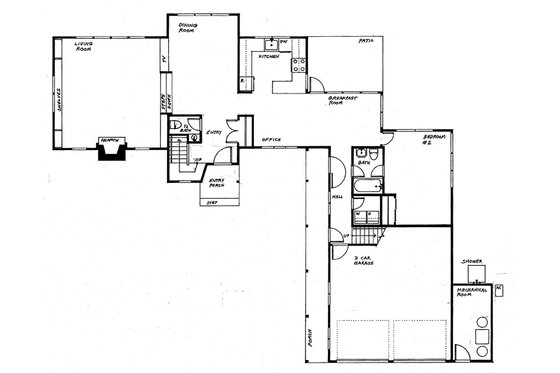

Main Floor Plan
Saved! Farmhouse Style House Plan - 3 Beds 2.5 Baths 2449 Sq/Ft Plan #510-2 Main Floor Plan - Houseplans.com
Upper Floor Plan
Saved! Farmhouse Style House Plan - 3 Beds 2.5 Baths 2449 Sq/Ft Plan #510-2 Upper Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Stories : 2
Garage Stalls : 2
Potential Bedrooms : 0
Bedrooms : 3
Baths : 2.5

Dimension

Width : 60'
Height : 26'
Depth : 62'

Area

Upper Floor Sq Ft : 930 sq ft
Total Sq Ft : 2449 sq ft
Main Floor Sq Ft : 1519 sq ft

Ceiling

Main Ceiling Ft : 8'
Upper Ceiling Ft : 8'

Roof

Secondary Pitch : 12:12
Primary Pitch : 8:12

Exterior Wall Framing

Framing : 2"x6"

Bedroom Features

Main Floor Bedrooms
Upstairs Master Bedrooms
Split Bedrooms

Kitchen Features

Peninsula Eating Bar

Additional Room Features

Great Room Living Room
Den Office Study Computer

Garage Features

Front Entry Garage

Lot Characteristics

Suited For View Lot

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Set Price

5 Copy Set
$2500.00
PDF Set
$2500.00

Foundation Price

Slab
+$0.00

Additional Construction Sets $40.00/each

Mirror Reverse Sets $0.00/each

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Meet the Designer - Lester Walker

null - Houseplans.com
“Creating a home is a multi-faceted experience that borrows from the past, studies the present, and imagines the future. If owner, architect, and builder remain open minded and resilient during the design and construction process, the result will be personal, comfortable, and exciting.”

Les Walker has been practicing architecture as an art form for nearly 30 years in the Hudson Valley. Prior to that, he was a founding member of Studio Works in Manhattan, which won several national and New York City awards for innovative design. Since moving to Woodstock, his work has been primarily influenced by the simple vernacular architecture of the region. Les has an abiding interest in the graphic arts and loves to draw. He is the author of eight books related to architecture; every book includes numerous explanatory drawings integral to the subject matter. The two most popular of these, Tiny Tiny Houses: Or How To Get Away From It All -- and American Shelter: An Illustrated Encyclopedia of the Amercian Home -- have sold over 100,000 copies. He employs his draings to communicate design ideas, both in his books and his architectural practice.


He received a Masters Degree in Architecture from Yale University and a Bachelors Degree in Architecture from the Pennsylvania State University. Les has been published in magazines and newspapers worldwide and lectured at several American colleges and universities. He was an adjunct Professor of Architecture at the City College of New York for 20 years and has served on the Board of Directors of the Woodstock (NY) Byrdcliffe Guild for over 25 years where his primary interest is the preservation of the historic Byrdcliffe Arts Colony buildings.
