Plan #901-64

Key Specs

  • 5 Bedrooms

  • 3 Bathrooms

  • 2 Floors

  • 2 Garage

  • 2658 sq ft

Plan Description

A walkout ranch plan with open foyer and staircase which leads you into the kitchen, dining, and living all opening to outdoor living in the rear of the home. Two bedrooms and a full bath occupy one side of the home while the master suite occupys the other. The lower level offers two additional bedrooms, a large family room, and a storage or exercise area.

Floor Plans

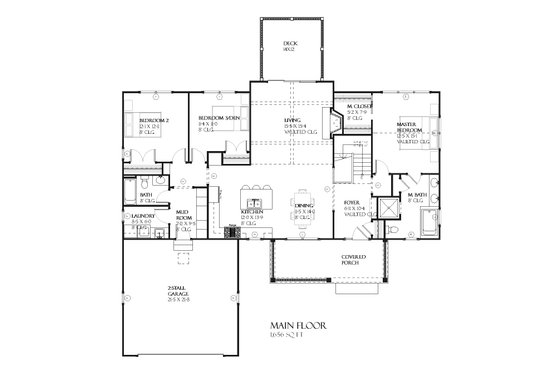

Main Floor Plan
Saved! Ranch Style House Plan - 5 Beds 3 Baths 2658 Sq/Ft Plan #901-64 Main Floor Plan -
Lower Floor Plan
Saved! Ranch Style House Plan - 5 Beds 3 Baths 2658 Sq/Ft Plan #901-64 Lower Floor Plan -

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Garage Stalls : 2
Baths : 3
Stories : 2
Bedrooms : 5


Depth : 52'
Width : 60'
Height : 0"


Total Sq Ft : 2658 sq ft
Lower Floor Sq Ft : 1001 sq ft
Main Floor Sq Ft : 1657 sq ft


Lower Ceiling Ft : 9'
Main Ceiling Ft : 9'

Exterior Wall Framing

Framing : 2x4

Bedroom Features

Main Floor Master Bedroom
Walk In Closet
Main Floor Bedrooms

Kitchen Features

Kitchen Island

Additional Room Features

Den Office Study Computer
Storage Area
Hobby Rec Room Game Room
Great Room Living Room
Family Room Keeping Room
Exercise Room
Main Floor Laundry
Unfinished Future Space
Mud Room
Wet Bar

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot
Suited For Narrow Lot
Suited For Sloping Lot

Outdoor Spaces

Grill Deck Sundeck
Covered Front Porch


Economical To Build
Empty Nester

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

  • Title Sheet. This page includes a color rendering of your home and an overview of the floor plan.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

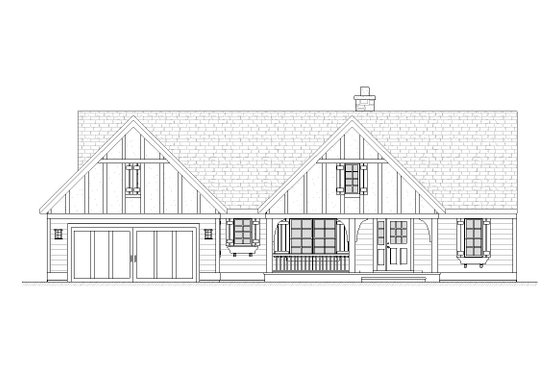

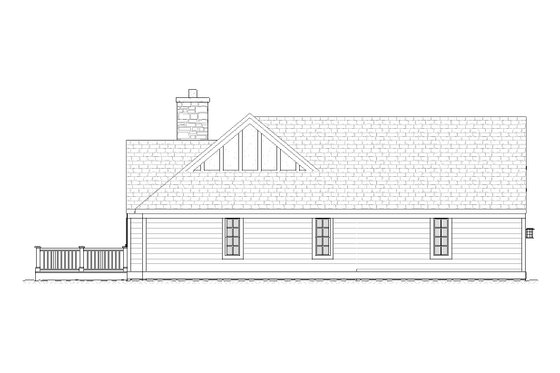

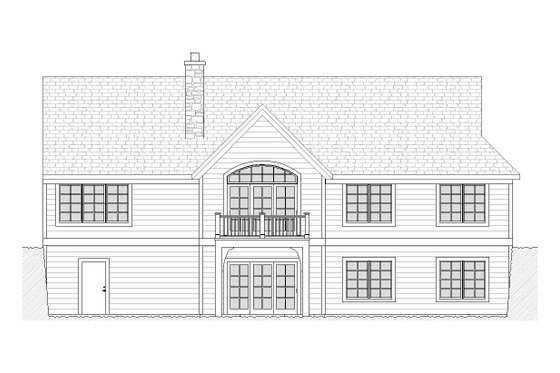

  • Exterior Elevations. Front, rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material callouts, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.


Plan Set Price

5 Copy Set
8 Copy Set

Foundation Price


Mirror Reverse Sets $150.00/each

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $1600.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
