2689 sq ft
Ridge Height is measured from the floor of the garage.
Families who love the outdoors will love this multi-level, hillside home. Two front decks beckon all to relax in the fresh air. (Both decks feature a closet for stowing outdoor furniture.) A wealth of windows open every room to light and the view. Patio doors in the breakfast nook offer easy access to the back yard.
There's plenty of room to roam or gather the gang in the open spaces of the first floor. A step up from the front entry, the commanding family room features a window seat that invites family members to laze in the sun. Both the family room and den are warmed by a two-sided fireplace. Across the hall, the kitchen offers work centers for a family of cooks. The angular island is fitted with a self-venting cooktop and a sit-down snack counter. Formal rooms - the dining room and parlor - make entertaining a delight.
Seeking solitude? Withdraw to the second floor. Elegant double doors open the master suite, which includes a vaulted bedroom that's large enough to accommodate a cozy sitting area. This private retreat also boasts a deck, a walk-in closet, and a bath built for two. The bath is furnished with a double-sink vanity, shower, and a whirlpool tub in a windowed alcove. In the hall, a gallery with a half-wall overlooks the family room.
This plan can be customized!
Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.
Floor PlansFloor Plan - Main Floor Plan
Full Specs & Features
Exterior Wall Framing
Additional Room Features
What's included in this plan set
- Exterior Elevations

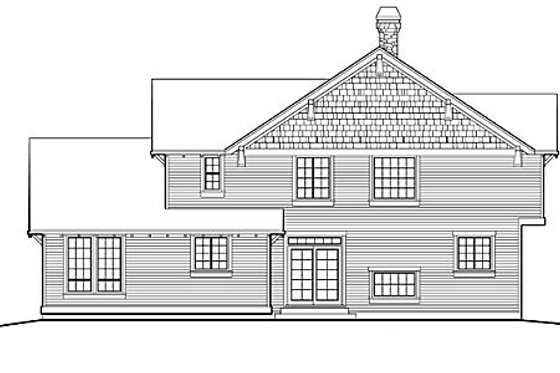

- In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
- The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

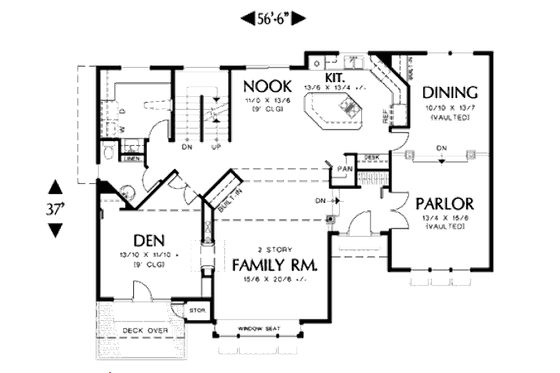

- Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
- Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
- Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s)
- Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
|5 Copy Set||$850.00||5 printed plan sets mailed to you.|
|8 Copy Set||$950.00||8 printed plan sets mailed to you.|
|PDF Set Best Value!||$1210.00||PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|CAD Set||$1955.00||For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Single Set||$715.00||One printed set for bidding purposes only. Not a legal building set.|
|Partial Basement Crawlspace||$0.00||Ideal for a level lot. Allows for some of the lower level to be underground. The remaining foundation is a crawlspace.|
|Additional Copies||$40.00/each||Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Right-Reading Reverse||$100.00||Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.|
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.
The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).
