Plan #120-178

Key Specs


  • 3069 sq ft

  • 4 Bedrooms

  • 4 Bathrooms

  • 2 Floors

  • 3 Garage
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

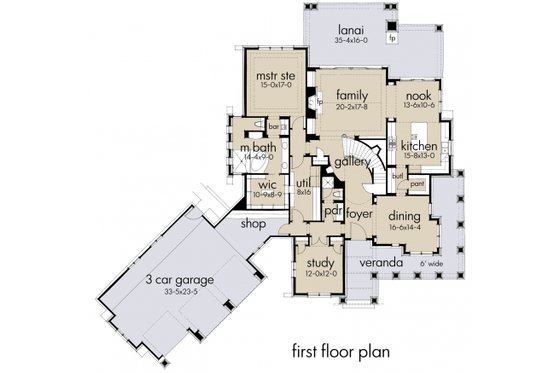

Floor Plan - Main Floor Plan
Saved! Craftsman Style House Plan - 4 Beds 4 Baths 3069 Sq/Ft Plan #120-178 Floor Plan - Main Floor Plan - Houseplans.com
Floor Plan - Other Floor Plan
Saved! Craftsman Style House Plan - 4 Beds 4 Baths 3069 Sq/Ft Plan #120-178 Floor Plan - Other Floor Plan - Houseplans.com

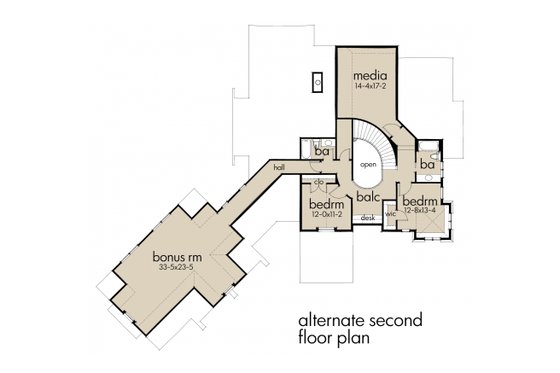

Floor Plan - Upper Floor Plan
Saved! Craftsman Style House Plan - 4 Beds 4 Baths 3069 Sq/Ft Plan #120-178 Floor Plan - Upper Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Garage Stalls : 3
Baths : 4
Stories : 2
Bedrooms : 4

Dimension

Depth : 93'
Width : 94'

Area

Upper Floor Sq Ft : 626 sq ft
Bonus Sq Ft : 730 sq ft
Patios Sq Ft : 527 sq ft
Garage Sq Ft : 972 sq ft
Storage Sq Ft : 362 sq ft
Total Sq Ft : 3069 sq ft
Porch Sq Ft : 419 sq ft
Main Floor Sq Ft : 2443 sq ft

Ceiling

Upper Ceiling Ft : 9'
Main Ceiling Ft : 10'

Roof

Primary Pitch : 12:12
Roof Framing : stick
Roof Load : 20
Secondary Pitch : 4:12

Exterior Wall Framing

Framing : 2 x 6

Bedroom Features

Upstairs Bedrooms
Main Floor Master Bedroom
Walk In Closet
Split Bedrooms

Kitchen Features

Butler's Pantry
Walk In Pantry Cabinet Pantry
Kitchen Island
Breakfast Nook

Additional Room Features

Den Office Study Computer
Bonus Play Flex Room
Family Room Keeping Room
Media Room
Main Floor Laundry

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Rear Porch
Covered Front Porch

What's included in this plan set

  • Floor Plans: A 1/4" = 1'-0" scale floor plan indicating frame walls and masonry with dimensions, notes, door and window sizes, room names and floor finishes, cabinet, shelving, fixture locations and notes, ceiling conditions, electrical/lighting fixtures and switches.
  • Exterior Elevations: Front Elevation at 1/4" = 1'-0", side and rear elevations at 1/8" = 1'-0", plate heights, roof overhangs, material/surface notes, window heights, roof pitches, material hatching for clarity, floor to floor dimensions and any other detail we feel is necessary to explain the construction.
  • Cabinets/Building Sections: Cabinet elevations at 3/8" = 1'-0", showing cabinets, appliance locations, plumbing fixtures, shelving, counter/backsplash surface, cabinet material and finish, niche details and any other special situation that cannot be understood from the plan view. Building Sections are included only when there is no other way to indicate the spatial characteristics of the home. This information is quite often indicated well enough on the elevations and plans.
  • Foundation Plans: Fully dimensioned and noted indicating wall composition and thickness, construction detail references to our detail page, beam, pier and column locations and sizes, stair locations for basements, reinforcing steel sizes and step downs in monolithic slabs and ventilation grilles for crawlspaces.
  • Framing Plans: A 1/8" = 1'-0" scale plan indicating rafter, ceiling and floor joists locations, sizes and spacing as well as lumber grade specified, additional bracing and blocking.
  • Details: For each foundation type, 3/4" = 1'-0" scale details are included indicating material composition, size and critical dimensions for construction of the primary foundation.
*See important information before purchasing

Pricing

Plan Options
5 Copy Set $1345.00 5 printed plan sets mailed to you.
8 Copy Set $1645.00 8 printed plan sets mailed to you.
PDF Set Best Value! $1845.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set $2995.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Study Set $945.00 One electronic set for bidding purposes only. Not a legal building set.
Foundation Options
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace $300.00 Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement $400.00 Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Additional Copies $100.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse $300.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).
