  • Plan 100-502

  • 3103 sq ft
  • 4 beds
  • 2.5 baths
  • 62' wide
  • 57' deep
more details
Houzz
Email Print

Floor Plans

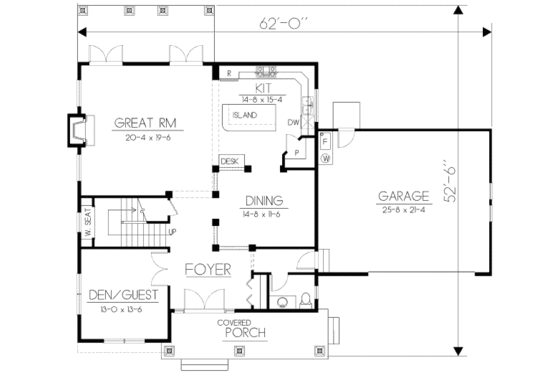

Main Floor Plan

Saved! Bungalow Style House Plans - 4 Beds 2.5 Baths 3103 Sq/Ft Plan #100-502 Main Floor Plan - Houseplans.com

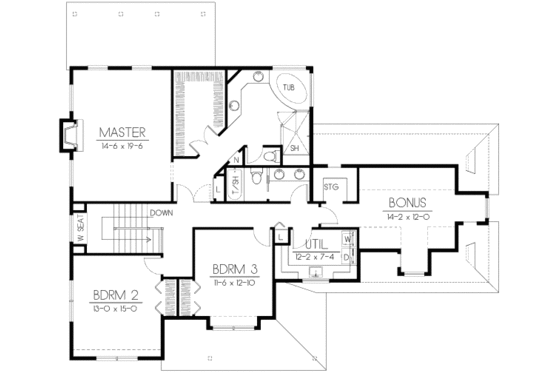

Upper Floor Plan

Saved! Bungalow Style House Plans - 4 Beds 2.5 Baths 3103 Sq/Ft Plan #100-502 Upper Floor Plan - Houseplans.com

Specifications

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry
Peninsula Eating Bar

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Area

Upper Floor Sq Ft
1683 sq ft
Total Sq Ft
3103 sq ft
Main Floor Sq Ft
1420 sq ft
Porch Sq Ft
381 sq ft
Garage Sq Ft
572 sq ft
Bonus Sq Ft
231 sq ft

Ceiling

Main Ceiling Ft
9'
Upper Ceiling Ft
8'

Code

Irc 2006

Dimension

Height
28'
Width
62'
Depth
57'

Bedroom Features

Walk In Closet
Upstairs Master Bdrm

Additional Rooms

Storage Area
Upstairs Laundry
Bonus Play Flex Room
Great Room Living Room
Den Office Study Computer

Basic Features

Baths
2.5
Potential Bedrooms
0
Garage Stalls
2
Stories
2
Bedrooms
4

Roof

Primary Pitch
6:12
Secondary Pitch
8:12

Exterior Wall Framing

Framing
2"x6"

Structural

Structural Notes
Foundation Drawing
Structural Roof Framing

Pricing

Plan Set Price

PDF Set
$825.00
Reproducible Set
$900.00
5 Copy Set
$925.00
8 Copy Set
$975.00
CAD Set
$1700.00

Foundation Price

Crawlspace
+$0.00
Slab
+$150.00
Basement
+$250.00
Daylight Basement
+$350.00

Additional Construction Sets $50.00/each

Right-Reading Reverse $150.00

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Plan Content

  • Elevations drawn at 1/4" = 1'-0" scale, and includes:
    Material labels
    Floor-to-floor heights
    Roof slope indicators
    Attic ventilation notes
  • Floor Plans drawn at 1/4" = 1'-0" scale, and includes:
    All post and beam locations
    Door and window sizes
    Complete and accurate dimensions
    Room labels and interior room sizes
    Electrical layouts
    Code-related notes
    Building section markers
    Floor joist type, spacing and direction
  • Foundation or Basement Plan drawn at 1/4" = 1'-0" scale, and includes:
    All post and beam locations
    Door and window sizes
    Complete and accurate dimensions
    All foundation wall and footing sizes
    Code-related notes
    Building section markers
    Floor and deck joist type, spacing and direction
    Mechanical equipment location
    Electrical layouts
  • Roof Plan drawn at 1/4" = 1'-0", and includes:
    All beam and header locations
    Building section markers
    Code-related notes
    All necessary notes pertaining to the structural system
  • Building Sections drawn at 1/4" = 1'-0" scale, and includes:
    Beam connections and locations
    Floor joist type and spacing
    Floor-to-floor heights
    Non-typical plate heights indicated
  • Typical wall sections drawn at 1/2" = 1'-0" scale, and includes:
    All labels indicating wall construction
    Foundation wall thickness and minimum reinforcing
    Insulation type and rating
  • Miscellaneous Notes and Details: Including miscellaneous framing details, stairway details and general notes covering code requirements for residential construction
