Plan #124-864

Key Specs


  • 3248 sq ft

  • 3 Bedrooms

  • 3.5 Bathrooms

  • 1 Floor

  • 2 Garage

Plan Description

Interesting angles throughout add uniqueness to almost every room. Designed for a frequently hot climate, this Mediterranean-style home has double-thick insulation and three-foot overhangs. Filtered light spills down over the octagonal dining room at center, through a similarly shaped crown of clerestory windows high overhead.

Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

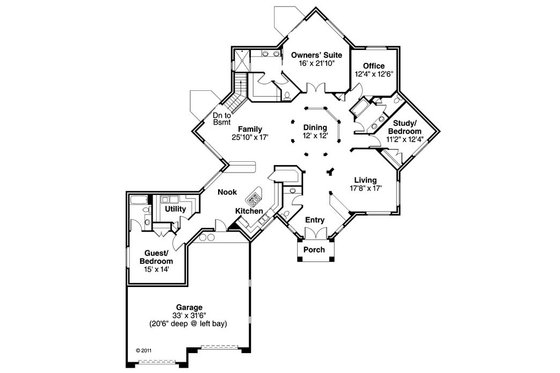

Floor Plan - Main Floor Plan
Saved! Ranch Style House Plan - 3 Beds 3.5 Baths 3248 Sq/Ft Plan #124-864 Floor Plan - Main Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Garage Stalls : 2
Potential Bedrooms : 0
Baths : 3.5
Stories : 1
Bedrooms : 3

Dimension

Depth : 98'
Width : 86'
Height : 25'

Area

Garage Sq Ft : 898 sq ft
Total Sq Ft : 3248 sq ft
Main Floor Sq Ft : 3248 sq ft

Ceiling

Main Ceiling Ft : 9'

Roof

Primary Pitch : 4:12
Roof Framing : Truss
Roof Load : 25

Exterior Wall Framing

Framing : Double 2x4

Bedroom Features

Main Floor Master Bedroom
Walk In Closet
Guest Suite
Main Floor Bedrooms

Kitchen Features

Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Kitchen Island
Breakfast Nook

Additional Room Features

Den Office Study Computer
Great Room Living Room
Bonus Play Flex Room
Family Room Keeping Room
Main Floor Laundry
Unfinished Future Space
Master Sitting Area

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Grill Deck Sundeck
Covered Front Porch

More

Suited For Vacation Home
Unusual Shape
Empty Nester

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing
Structural Roof Framing
Structural 1st Floor Framing

Energy Efficient Features

Green Specifications

What's included in this plan set

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
*See important information before purchasing

Pricing

Plan Options
5 Copy Set $1075.00 5 printed plan sets mailed to you.
8 Copy Set $1175.00 8 printed plan sets mailed to you.
PDF Set Best Value! $2150.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set $2250.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Study Set $875.00 One electronic set for bidding purposes only. Not a legal building set.
