Plan #84-619

Key Specs


  • 4 Bedrooms

  • 2.5 Bathrooms

  • 2 Floors

  • 3 Garage

  • 3364 sq ft

Plan Description

There is a place for all of your dreams in this comfortable & spacious home. A generously sized dining room open to the entry with large family open to the gourmet kitchen & dinette. A pool bath & rear foyer are handy to the oversized 3 car garage. An elegant master & 3 bedrooms with walk-in closets & 2 baths round out the lower floor. Media room & large deck are perfect for watching movies or sunsets. Stone & Cedar add warmth to the front elevation, featuring a porch for waving to neighbors.

Full Specs & Features

Basic Features

Garage Stalls : 3
Baths : 2.5
Stories : 2
Bedrooms : 4

Dimension

Depth : 53'
Width : 90'
Height : 30'

Area

Upper Floor Sq Ft : 334 sq ft
Decks Sq Ft : 219 sq ft
Garage Sq Ft : 796 sq ft
Total Sq Ft : 3364 sq ft
Porch Sq Ft : 356 sq ft
Main Floor Sq Ft : 3030 sq ft

Ceiling

Upper Ceiling Ft : 8'
Garage Ceiling Ft : 9'
Ceiling Details : 10' tier vault in master 9' tier in media
Main Ceiling Ft : 10'

Roof

Primary Pitch : 10:12
Secondary Pitch : 14:12
Roof Type : Gables

Exterior Wall Framing

Exterior Wall Finish : Brick, stone
Framing : 2x4

Bedroom Features

Teen Suite Jack Jill Bath
Main Floor Master Bedroom
Walk In Closet
Main Floor Bedrooms
Split Bedrooms

Kitchen Features

Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Kitchen Island

Additional Room Features

Family Room Keeping Room
Library Room
Main Floor Laundry
Mud Room

Garage Features

Side Entry Garage

Entryway

Friend S Entry

Outdoor Spaces

Covered Rear Porch
Covered Front Porch

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Floor Plans

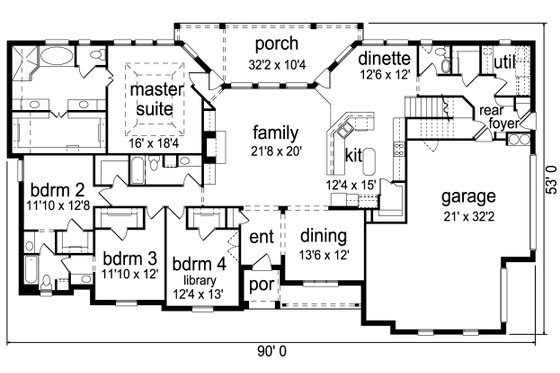

Main Floor Plan
Saved! European Style House Plan - 4 Beds 2.5 Baths 3364 Sq/Ft Plan #84-619 Main Floor Plan - Houseplans.com
Upper Floor Plan
Saved! European Style House Plan - 4 Beds 2.5 Baths 3364 Sq/Ft Plan #84-619 Upper Floor Plan - Houseplans.com

What's included in this plan set

  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

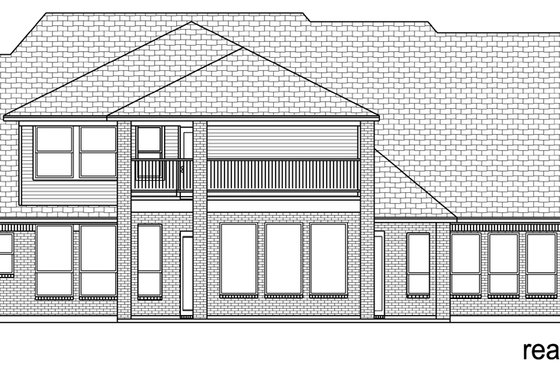

  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.

Pricing

Plan Set Price

5 Copy Set
$940.00
8 Copy Set
$1025.00
PDF Set
$1145.00
Reproducible Set
$1200.00
CAD Set
$1950.00
Single Set
$885.00

Foundation Price

Crawlspace
+$0.00
Slab
+$0.00

Additional Construction Sets $60.00/each

Mirror Reverse Sets $60.00/each

Right-Reading Reverse $175.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $940.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
