Plan #496-17

Key Specs

  • 4 Bedrooms

  • 2.5 Bathrooms

  • 2 Floors

  • 2 Garage

  • 3389 sq ft

Plan Description

This carefully organized modern plan provides gracious two level-living for a relatively narrow or infill lot. Entry is between the two-car garage and the living room, with its corner window facing the street. Laundry and powder room are conveniently located off the entry hall near the door from the garage. The entry hall leads into the great room -- containing island kitchen, dining area, and family room -- at the rear of the house. It opens to side patio. Upstairs, the master suite is at the front of the house; master bath is accessible from both sides of the bed for extra convenience. There's also a small study near the entrance to the master suite, which could become an upstairs laundry if needed. The other three bedrooms line up along the rear of the house and are accessible from a short hall that includes a study nook and opens to a second powder room and a full bath.

Floor Plans

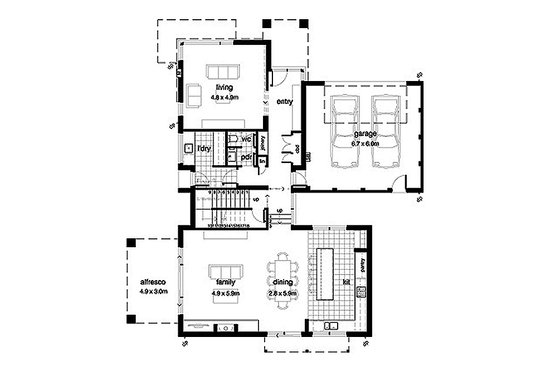

Main Floor Plan Upper Floor Plan

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Garage Stalls : 2
Baths : 2.5
Stories : 2
Bedrooms : 4


Depth : 63'
Width : 47'
Height : 22'


Upper Floor Sq Ft : 1700 sq ft
Garage Sq Ft : 460 sq ft
Total Sq Ft : 3389 sq ft
Porch Sq Ft : 51 sq ft
Main Floor Sq Ft : 1689 sq ft

Bedroom Features

Upstairs Bedrooms
Walk In Closet
Upstairs Master Bedrooms

Kitchen Features

Peninsula Eating Bar

Additional Room Features

Den Office Study Computer
Great Room Living Room
Family Room Keeping Room
Upstairs Laundry

Garage Features

Front Entry Garage

Outdoor Spaces

Grill Deck Sundeck

What's included in this plan set

All plans are designed in metric measurements

  • Exterior Elevations: Drawn to 1:50 metric scale. A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1:50 metric scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section(s): Drawn to 1:100 metric scale showing vertical cutaway view(s) of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Typical Wall Details: Drawn to 1:10 metric scale.
  • Window Details: Drawn to 1:50 metric scale. This page details window design and details
  • Note: This plan does not have a foundation plan. The foundation will need to be designed by a local professional, who is familiar with your site and local requirements.


Plan Set Price

5 Copy Set
Reproducible Set

Foundation Price


Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.
