This "L-shaped" plan features open spaces and ample storage. Designed to accommodate cross-ventilation and provide abundant light, the two wings are hinged by a masonry stair tower that is topped by a private, third floor retreat. The main living spaces encourage outdoor living, opening directly to a covered porch and adjoining deck. The broad roofs and simple massing recall the iconography of rural, vernacular architecture, while a contemporary handling of form and detail suggest a more modern sensibility. This house is unique blend of functional commodity, modern facility, and nostalgic comfort.
Exterior Wall Framing
Plan Set Price
Additional Construction Sets $50.00/each
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

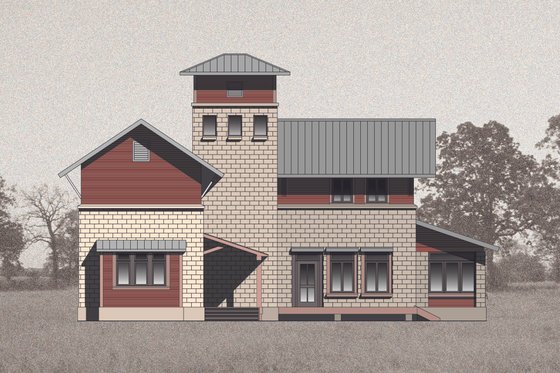

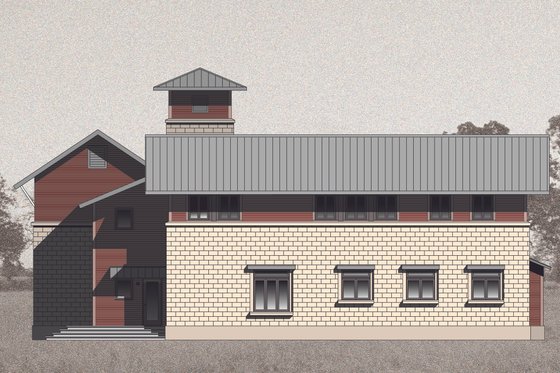

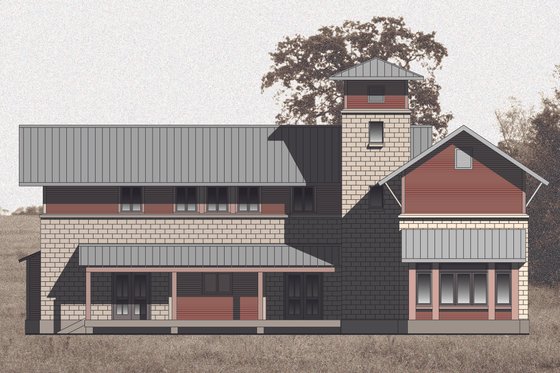

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

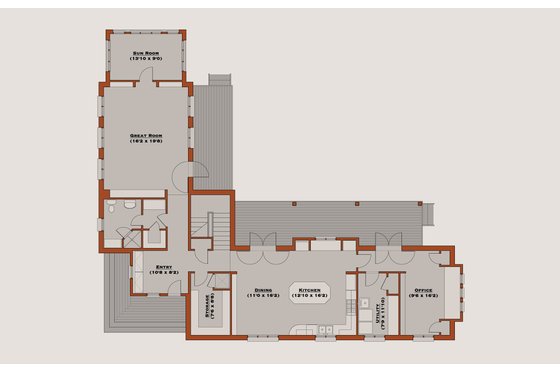

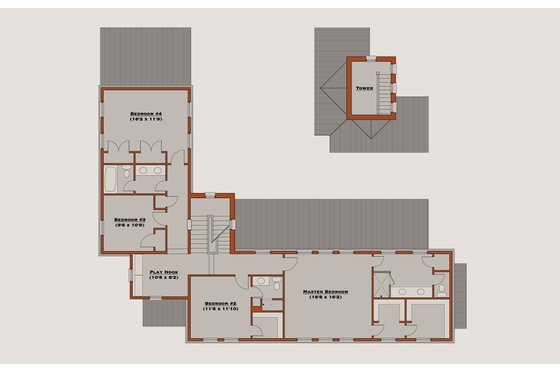

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
