Plan #535-1

Key Specs


  • 3540 sq ft

  • 3 Bedrooms

  • 4.5 Bathrooms

  • 2 Floors

  • 2 Garage

Plan Description

The building is designed as a family business and living environment. Separate entrances serve the ground floor work areas from the residential entrance. Roof top decks serve the residential areas as does the attached garage. The exterior walls are designed for “green wall” construction typical with well insulated, ICF wall products. The flat roof design is suitable for solar panels or wind turbines.
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

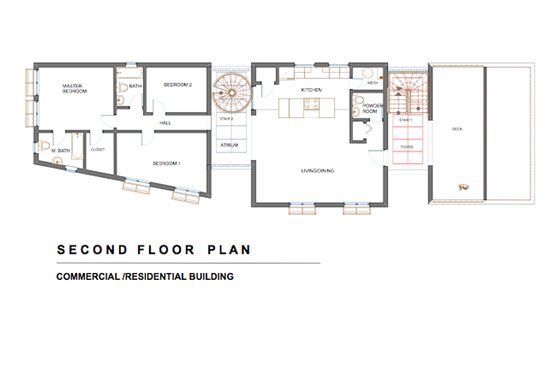

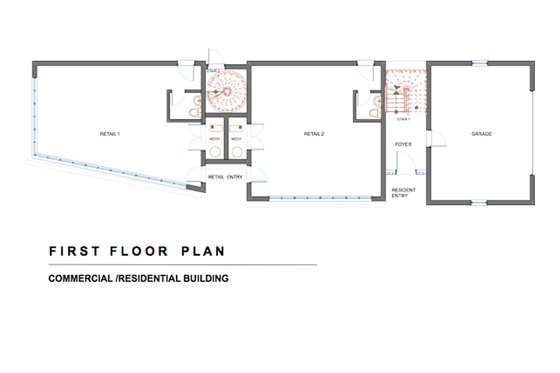

Floor Plan - Main Floor Plan Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Stories : 2
Bedrooms : 3
Baths : 4.5
Garage Stalls : 2

Dimension

Depth : 77'
Height : 20'
Width : 29'

Area

Total Sq Ft : 3540 sq ft
Main Floor Sq Ft : 1640 sq ft
Upper Floor Sq Ft : 1900 sq ft

Ceiling

Upper Ceiling Ft : 8'
Main Ceiling Ft : 9'

Exterior Wall Framing

Framing : ICF

Bedroom Features

Upstairs Master Bedrooms
Upstairs Bedrooms

Kitchen Features

Kitchen Island

Additional Room Features

Great Room Living Room
Inverted Living

Garage Features

Side Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Grill Deck Sundeck

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing
