Plan #899-1

Key Specs


  • 4 Bedrooms

  • 2.5 Bathrooms

  • 2 Floors

  • 1 Garage

  • 3542 sq ft

Plan Description

Single Family Home

Floor Plans

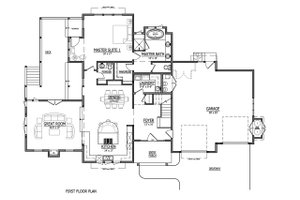

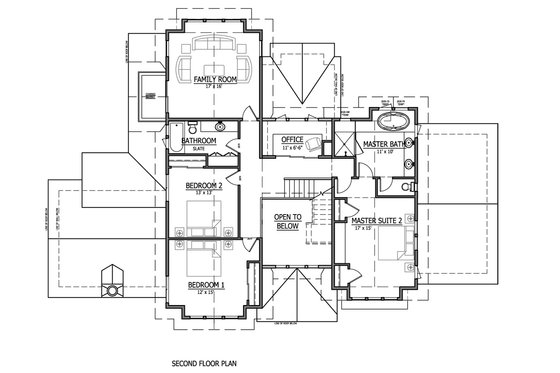

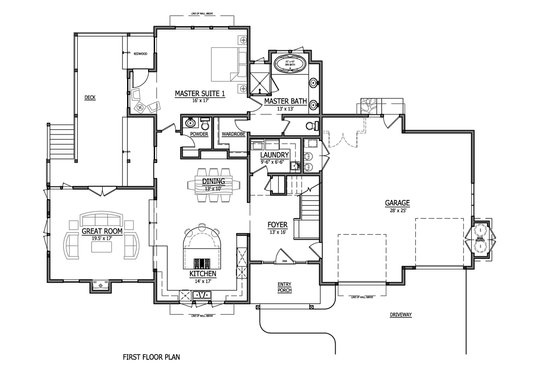

Main Floor Plan Upper Floor Plan Other Floor Plan

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Garage Stalls : 1
Baths : 2.5
Stories : 2
Bedrooms : 4

Dimension

Depth : 52'
Width : 82' 10"
Height : 29' 6"

Area

Upper Floor Sq Ft : 1695 sq ft
Garage Sq Ft : 856 sq ft
Total Sq Ft : 3542 sq ft
Porch Sq Ft : 615 sq ft
Main Floor Sq Ft : 1847 sq ft

Roof

Primary Pitch : 9:12
Roof Framing : Wood Framing - Scissor Truss and Rafter Mix
Roof Load : 153 psf
Secondary Pitch : 6:12

Exterior Wall Framing

Insulation : R-19 Batt
Exterior Wall Finish : Horizontal Siding and Shake
Framing : 2X6 Wood Framing

Bedroom Features

Upstairs Bedrooms
Main Floor Master Bedroom
Walk In Closet
2 Master Suites
Upstairs Master Bedrooms
Main Floor Bedrooms

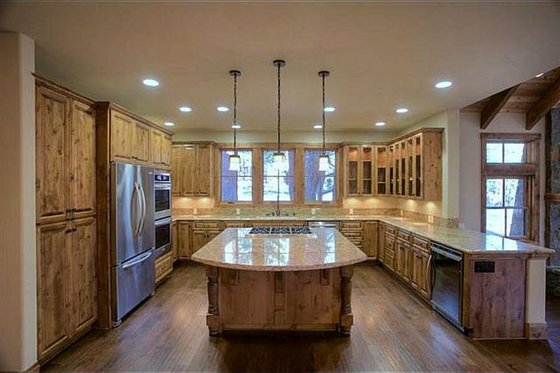

Kitchen Features

Peninsula Eating Bar
Kitchenette Wet Bar
Kitchen Island

Additional Room Features

Den Office Study Computer
Storage Area
Great Room Living Room
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Mud Room
Wet Bar

Garage Features

Oversized Garage
Front Entry Garage

More

Suited For Vacation Home
Two Family Home
Unusual Shape
Economical To Build
Unlimited Use

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Set Price

PDF Set
$1000.00
5 Copy Set
$1250.00
8 Copy Set
$1350.00
CAD Set
$2000.00
Single Set
$350.00

Foundation Price

Crawlspace
+$0.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Meet the Designer - Monarch Architecture

null - Houseplans.com Monarch was established as in 2005 in South Lake Tahoe, Ca. The firm maintains a commitment to enhance the regional community through thoughtful, innovative design while creating a legacy of buildings in tune with the region’s natural beauty. Monarch is a multidisciplinary firm that offers planning, design, interior and construction services under one roof. Our office providedes services for a wide variety of project types throughout California.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $1000.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

or call to order: 1-800-913-2350

How much will this cost to build?

This plan can be modified!

Also by This Designer

Signature Craftsman Front Elevation Plan #899-3 - Houseplans.com
Plan 899-3 from $1000.00
Saved!
3700 sq ft 5 bed 6 bath
2 story 81' wide 71' deep
Signature Craftsman Front Elevation Plan #899-2 - Houseplans.com
Plan 899-2 from $1000.00
Saved!
3642 sq ft 4 bed 4 bath
2 story 72' 6" wide 78' deep

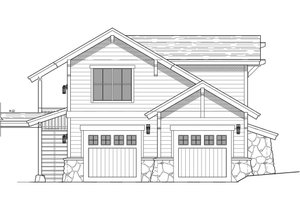

Craftsman Front Elevation Plan #899-4 - Houseplans.com
Plan 899-4 from $700.00
Saved!
605 sq ft 1 bed 1 bath
2 story 28' wide 32' deep
Signature Craftsman Front Elevation Plan #899-5 - Houseplans.com
Plan 899-5 from $800.00
Saved!
1749 sq ft 3 bed 2 bath
2 story 28' wide 60' deep

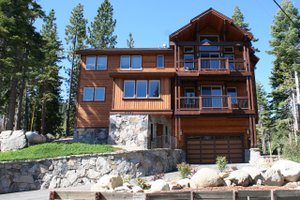

Signature Craftsman Front Elevation Plan #899-6 - Houseplans.com
