Plan #496-18

Key Specs


  • 3584 sq ft

  • 4 Bedrooms

  • 2.5 Bathrooms

  • 2 Floors

  • 2 Garage

Plan Description

GROUND FLOOR:
Study 3.5m x 4m or 11' 6" x 13' 2"
Living Room: 5.4m x 4.8m or 17' 81/2" x 15' 9"
Dining Area: 4.7m x 3.4m or 15' 5" x 11' 2"
Family Area: 5.3m x 6.6m or 17' 41/2" x 21' 8"
Garage: 6m x 6m or 19' 8" x 19' 8"

FIRST FLOOR:
Bedroom1 3.7m x 6m or 12' 1 1/2" x 19' 8"
Activity Area 5.2m x 4m or 17' 1/2" x 13' 2"
Bedroom 2 3.7m x 3.9m or 12' 1 1/2" x 12' 9 1/2"
Bedroom 3 3.7m x 3.9m or 12' 1 1/2" x 12' 9 1/2"
Bedroom 4 3.7m x 3.9m or 12' 1 1/2" x 12' 9 1/2"

Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

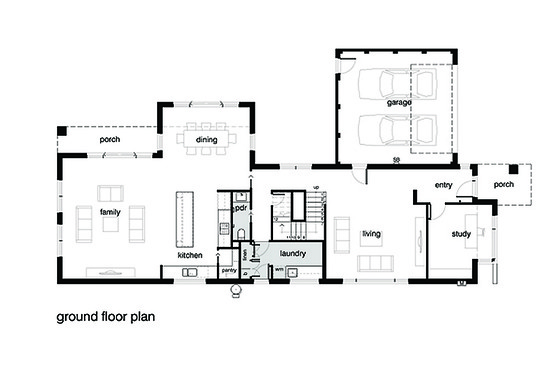

Floor Plan - Main Floor Plan Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Bedrooms : 4
Stories : 2
Garage Stalls : 2
Baths : 2.5

Dimension

Height : 24'
Depth : 42'
Width : 85'

Area

Total Sq Ft : 3584 sq ft *
Garage Sq Ft : 433 sq ft
Main Floor Sq Ft : 1862 sq ft
Upper Floor Sq Ft : 1722 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Bedroom Features

Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Walk In Pantry Cabinet Pantry
Peninsula Eating Bar
Kitchen Island
Breakfast Nook

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Grill Deck Sundeck
Loft Balcony

What's included in this plan set

All plans are designed in metric measurements

  • Exterior Elevations: Drawn to 1:50 metric scale. A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1:50 metric scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section(s): Drawn to 1:100 metric scale showing vertical cutaway view(s) of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Typical Wall Details: Drawn to 1:10 metric scale.
  • Window Details: Drawn to 1:50 metric scale. This page details window design and details
  • Note: This plan does not have a foundation plan. The foundation will need to be designed by a local professional, who is familiar with your site and local requirements.
*See important information before purchasing

Pricing

Plan Options
5 Copy Set $1600.00 5 printed plan sets mailed to you.
PDF Set Best Value! $1600.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $1600.00 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set $3600.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.
