Plan #17-2516

Key Specs


  • 3600 sq ft

  • 4 Bedrooms

  • 3 Bathrooms

  • 2 Floors

  • 3 Garage

Plan Description

The timber detailing highlight the rustic feel of this split bedroom plan. Featuring a fireplace in the open great room, one in the hearth room which is open to the kitchen, and one out back on the outdoor living/grilling porch. The master suite features a private access to the grilling porch while the master bath offers a large corner whirlpool tub and glass shower, double vanities, and a large walk-in closest. Bedrooms 2 and 3 are located upstairs with walk-in closets. And there?s also a huge flex room, an optional flex room, and a huge bonus room, home theater.

Floor Plans

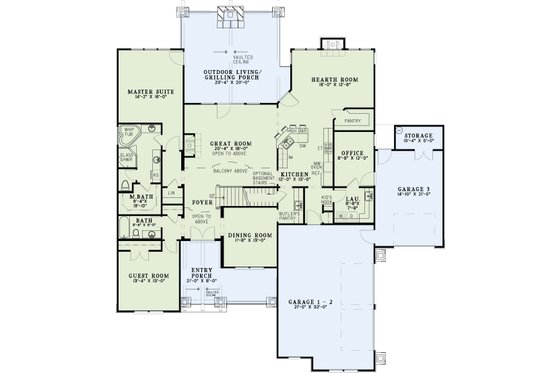

Floor Plan - Main Floor Plan
Saved! Craftsman Style House Plan - 4 Beds 3 Baths 3600 Sq/Ft Plan #17-2516 Floor Plan - Main Floor Plan - Houseplans.com

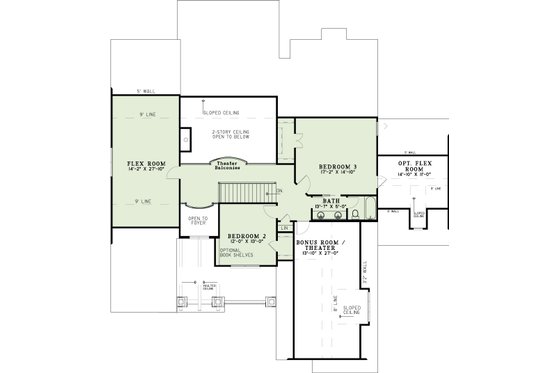

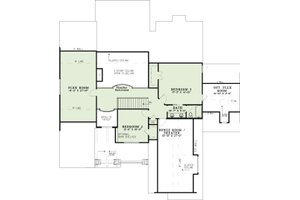

Floor Plan - Upper Floor Plan
Saved! Craftsman Style House Plan - 4 Beds 3 Baths 3600 Sq/Ft Plan #17-2516 Floor Plan - Upper Floor Plan - Houseplans.com

Customize This Plan

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Baths : 3
Garage Stalls : 3
Bedrooms : 4
Stories : 2

Dimension

Width : 72'
Depth : 80'
Height : 33'

Area

Main Floor Sq Ft : 2351 sq ft
Upper Floor Sq Ft : 1249 sq ft
Bonus Sq Ft : 629 sq ft
Garage Sq Ft : 1059 sq ft
Porch Sq Ft : 690 sq ft
Total Sq Ft : 3600 sq ft

Ceiling

Main Ceiling Ft : 9'
Upper Ceiling Ft : 9'

Roof

Roof Framing : 2x6
Roof Load : 45
Roof Type : Shingle

Exterior Wall Framing

Insulation : R-13
Framing : 2x4

Bedroom Features

Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Split Bedrooms

Kitchen Features

Peninsula Eating Bar
Butler's Pantry

Additional Room Features

Main Floor Laundry
Bonus Play Flex Room
Den Office Study Computer
Great Room Living Room
Storage Area

Garage Features

Oversized Garage
Split Garage

Outdoor Spaces

Covered Rear Porch
Covered Front Porch
