Plan #27-208

Key Specs


  • 3666 sq ft

  • 3 Bedrooms

  • 2.5 Bathrooms

  • 2 Floors

  • 2 Garage
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

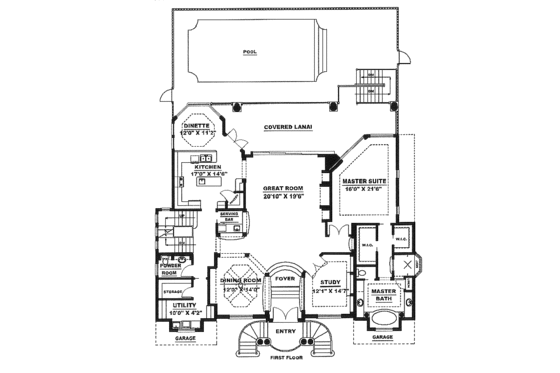

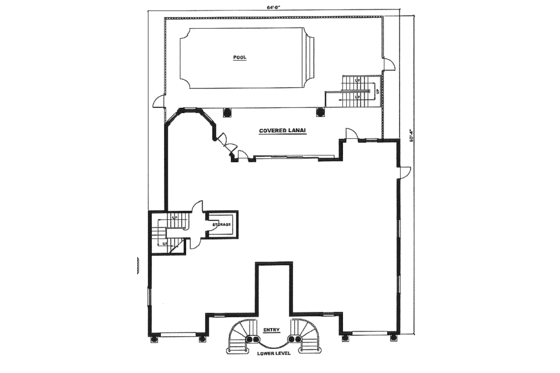

Floor Plan - Lower Floor Plan Floor Plan - Main Floor Plan Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Baths : 2.5
Bedrooms : 3
Garage Stalls : 2
Potential Bedrooms : 0
Stories : 2

Dimension

Width : 64'
Depth : 82'
Height : 46'

Area

Upper Floor Sq Ft : 958 sq ft
Lower Floor Sq Ft : 1240 sq ft
Total Sq Ft : 3666 sq ft *
Main Floor Sq Ft : 2708 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Exterior Wall Framing

Framing : Concrete block

Bedroom Features

Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Walk In Pantry Cabinet Pantry
Butler's Pantry
Kitchen Island

Additional Room Features

Unfinished Future Space
Great Room Living Room
Den Office Study Computer
Storage Area

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Loft Balcony
Covered Rear Porch

What's included in this plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators
Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes
Electrical Layouts
Building Section Markers
All Electrical Outlets, Fixtures, and Switching
Slab Plan - Drawn at 1/8" to 1/4" Scale and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)
Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers
Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness
Miscellaneous Notes and Details
Miscellaneous General Notes
Stairway details (if applicable)
*See important information before purchasing

Pricing

Plan Options
CAD Set $1885.50 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set Best Value! $1885.50 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $1885.50 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation Options
Pier $0.00 Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

What's included?
Available for quick pdf download

Subtotal Now $1885.50

You save $209.50 (10% savings)

Sale ends on 07/02/2015

Best Price Guaranteed*

Or order by phone: 1-800-913-2350

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-to-Build Report
