Plan #411-163

Key Specs

  • 3828 sq ft

  • 3 Bedrooms

  • 3.5 Bathrooms

  • 2 Floors

  • 2 Garage
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

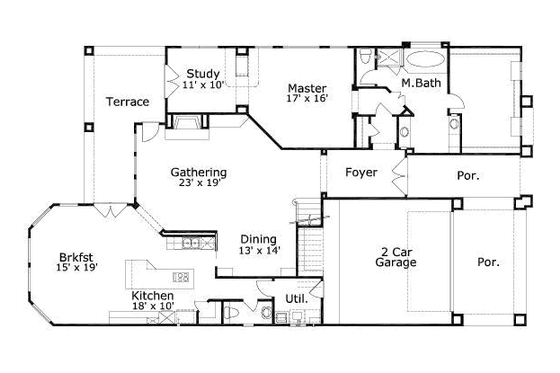

Floor Plan - Main Floor Plan
Mediterranean Style House Plan - 3 Beds 3.5 Baths 3828 Sq/Ft Plan #411-163 Floor Plan - Main Floor Plan -

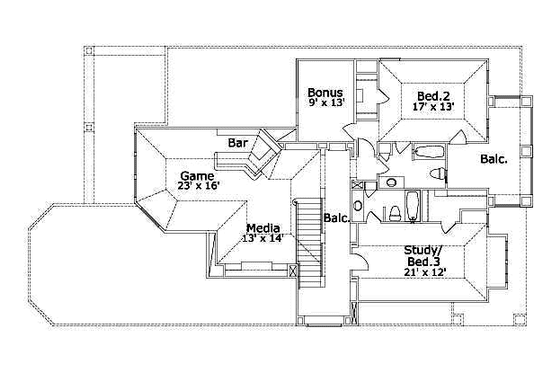

Floor Plan - Upper Floor Plan
Mediterranean Style House Plan - 3 Beds 3.5 Baths 3828 Sq/Ft Plan #411-163 Floor Plan - Upper Floor Plan -

Full Specs & Features

Basic Features

Baths : 3.5
Garage Stalls : 2
Potential Bedrooms : 0
Bedrooms : 3
Stories : 2


Depth : 81'
Width : 45'
Height : 25'


Upper Floor Sq Ft : 1581 sq ft
Total Sq Ft : 3828 sq ft *
Main Floor Sq Ft : 2247 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Main Ceiling Ft : 10'
Upper Ceiling Ft : 8'

What's included in this plan set

See a sample plan set


  • Rendered front elevation
  • Floor to floor & plate heights
  • Roof pitches
  • Exterior materials labeled
  • Window & door shapes & design


  • Complete & accurate dimensions
  • Floor & ceiling heights
  • General architectural features
  • Cabinet, appliance & plumbing layouts
  • Windows, door & openings labeled
  • Room titles
  • Code related & general notes
  • Building section markets
  • Electrical layouts (may be separate plan)


  • Floor to floor dimensions
  • Floor & ceiling changes
  • Floor system dimensions
  • Plate heights labeled
  • Roof pitches indicated
  • Stair section & related notes
  • Misc. framing detail
  • General code related notes for residential construction


  • Roof design
  • Hips, ridges, valleys, etc. labeled
  • Plate heights labeled
  • Notes related to residential construction
  • Code related notes


  • Cabinet elevations
  • Locations of drawers, doors, shelves, etc.
  • Locations of appliances, plumbing & related items
  • Dimensions of heights Specification of door designs & molding will not necessarily be indicated.


  • Typical building section
  • Wall sections indicating method of construction & material make-up
  • Misc. framing details
  • Typical lintel & header span tables
  • Fastening & nailing schedules
  • Typical 2 & 3 car detached garage plans
  • General & misc. code related notes


  • Foundation plans - A slab interface diagram is provided showing the footprint of the home but does not include structural details for constructing the foundation.
  • Structural engineering
  • HVAC layouts (heating & air conditioning)
  • Detailed specifications
  • Electrical wiring diagrams & load analysis
  • Plumbing diagrams
