Plan #48-563

Key Specs

  • 3926 sq ft

  • 5 Bedrooms

  • 4.5 Bathrooms

  • 2 Floors

  • 2 Garage
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

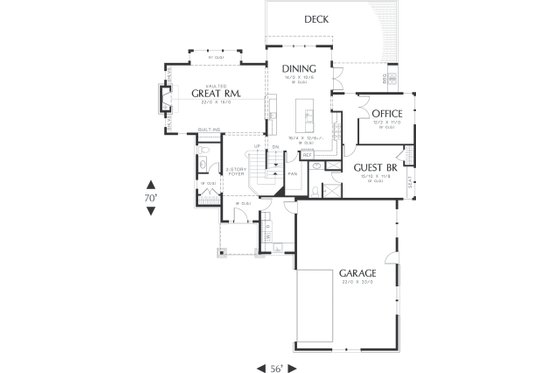

Floor Plan - Main Floor Plan
Craftsman Style House Plan - 5 Beds 4.5 Baths 3926 Sq/Ft Plan #48-563 Floor Plan - Main Floor Plan -
Floor Plan - Upper Floor Plan
Craftsman Style House Plan - 5 Beds 4.5 Baths 3926 Sq/Ft Plan #48-563 Floor Plan - Upper Floor Plan -
Floor Plan - Lower Floor Plan
Craftsman Style House Plan - 5 Beds 4.5 Baths 3926 Sq/Ft Plan #48-563 Floor Plan - Lower Floor Plan -

Full Specs & Features

Basic Features

Baths : 4.5
Stories : 2
Garage Stalls : 2
Bedrooms : 5


Depth : 70'
Width : 56'
Height : 29'


Garage Sq Ft : 765 sq ft
Lower Floor Sq Ft : 984 sq ft
Main Floor Sq Ft : 1735 sq ft
Total Sq Ft : 3926 sq ft *
Upper Floor Sq Ft : 1207 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Roof Framing : Truss

Exterior Wall Framing

Framing : 2x6

Bedroom Features

Upstairs Bedrooms
Walk In Closet
Main Floor Bedrooms
Split Bedrooms
Upstairs Master Bedrooms

Kitchen Features

Breakfast Nook
Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Kitchenette Wet Bar
Kitchen Island

Additional Room Features

Main Floor Laundry
Mud Room
Hobby Rec Room Game Room
Great Room Living Room

Garage Features

Side Entry Garage

Lot Characteristics

Suited For View Lot
Suited For Sloping Lot

Outdoor Spaces

Covered Rear Porch
Covered Front Porch
Grill Deck Sundeck
Outdoor Kitchen Grill

What's included in this plan set

See a sample plan set

  • Exterior Elevations
    In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

  • Foundation Plan
    The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

  • Floor Plan(s)
    Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

  • Building Sections
    Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

  • Roof Plan
    Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

  • Notes and Details Page(s)
    Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
*See important information before purchasing


Plan Options
5 Copy Set $1000.00 5 printed plan sets mailed to you.
8 Copy Set $1100.00 8 printed plan sets mailed to you.
PDF Set Best Value! $1495.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set $2300.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set $750.00 One printed set for bidding purposes only. Not a legal building set.
Foundation Options
Basement $0.00 Ideal for level lot, lower level of home partially or fully underground.
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Additional Copies $40.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse $100.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).
