Plan Description


This european design floor plan is 3983 sq ft and has 4 bedrooms and 4 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

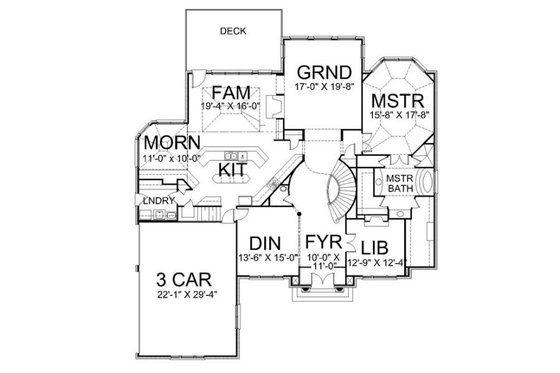

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 4
Stories: 2
Garages: 0

Dimension

Depth : 70'
Height : 35' 7"
Width : 66'

Area

Total : 3983 sq/ft
Basement Unfinished: 2162 sq/ft
Bonus: 512 sq/ft
First Floor: 2695 sq/ft height 10'
Second Floor: 1288 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick
Framing : Wood - 2x4

Rooms

Bedroom 2:

184 sq/ft width 14' 2" x depth 13'

Bedroom 3:

187 sq/ft width 12' 5" x depth 15' 1"

Bedroom 4:

192 sq/ft width 13' 7" x depth 14' 2"

Dining Room:

202 sq/ft width 13' 6" x depth 15'

Family Room:

309 sq/ft width 19' 4" x depth 16'

Foyer:

110 sq/ft width 10' x depth 11'

Garage:

647 sq/ft width 22' 1" x depth 29' 4"

Grand Room:

334 sq/ft width 17' x depth 19' 8"

Library:

157 sq/ft width 12' 9" x depth 12' 4"

Master Bedroom:

276 sq/ft width 15' 8" x depth 17' 8"

Morning Room:

110 sq/ft width 11' x depth 10'
