Main Floor Plan
An open floor plan for entertaining, executive sized master suite & 3 car garage make this plan perfect for an active family. Note that the library & media rooms can be converted to bedrooms as the need arises. Large gourmet kitchen has easy access to the back porch for barbeques. Elegant master bath has oversized vanities, tub & walk-in closet.
Plan Set Price
Additional Construction Sets $45.00/each
Mirror Reverse Sets $0.00/each
Right-Reading Reverse $200.00
The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale

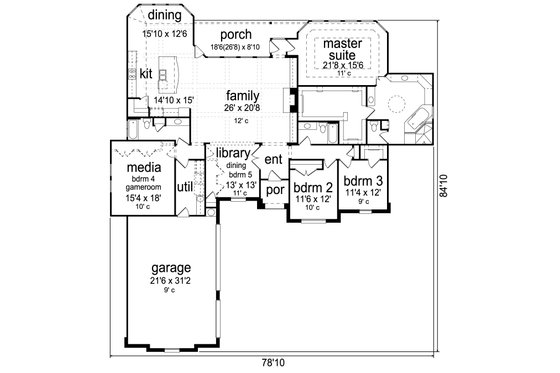

- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

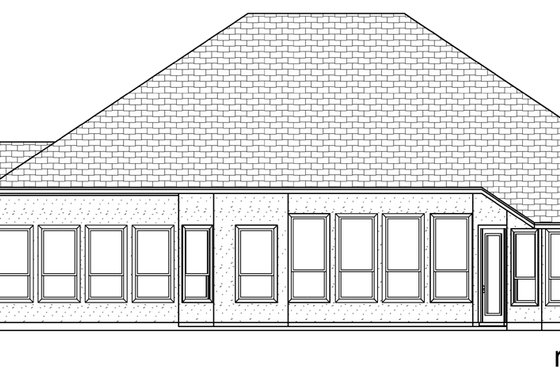

- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
