Plan #24-273

Key Specs


  • 4140 sq ft

  • 5 Bedrooms

  • 5 Bathrooms

  • 2 Floors

  • 3 Garage
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

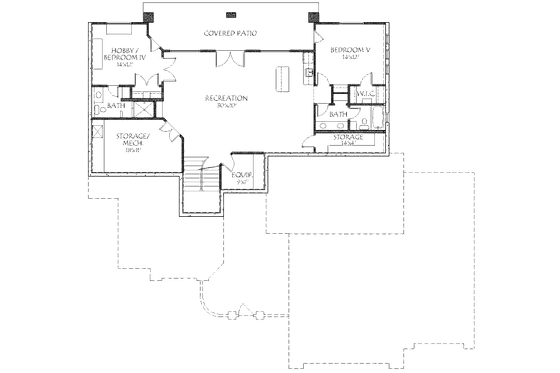

Floor Plan - Lower Floor Plan
Saved! Adobe / Southwestern Style House Plan - 5 Beds 5 Baths 4140 Sq/Ft Plan #24-273 Floor Plan - Lower Floor Plan - Houseplans.com
Floor Plan - Main Floor Plan
Saved! Adobe / Southwestern Style House Plan - 5 Beds 5 Baths 4140 Sq/Ft Plan #24-273 Floor Plan - Main Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Bedrooms : 5
Potential Bedrooms : 0
Stories : 2
Garage Stalls : 3
Baths : 5

Dimension

Depth : 71'
Width : 77'

Area

Total Sq Ft : 4140 sq ft *
Porch Sq Ft : 635 sq ft
Garage Sq Ft : 1070 sq ft
Lower Floor Sq Ft : 1675 sq ft
Main Floor Sq Ft : 2465 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling Ft : 9'

Roof

Primary Pitch : 5:12

Exterior Wall Framing

Framing : 2"x4"

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

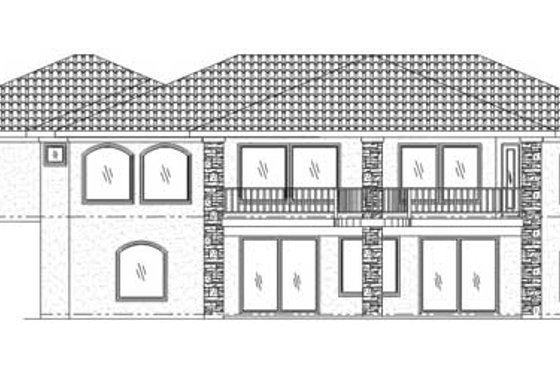

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing

Plan Options
5 Copy Set $1530.00 5 printed plan sets mailed to you.
Reproducible Set $2514.00 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation Options
Daylight Basement $0.00 Ideal for sloping lot, lower level of home partially underground.
Additional Options
Additional Copies $50.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reverse Sets $0.00/each Choose how many sets of the 5 or 8 copy set to mirror. Text and dimensions will be backwards. Click here for more information.
Right-Reading Reverse $150.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

What's included?
Available for quick pdf download

Subtotal $1530.00

Best Price Guaranteed*

Or order by phone: 1-800-913-2350

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-to-Build Report
