- Square Feet 4160 sq ft
- Bedrooms 2
- Baths 2.00
- Garage Stalls 0
- Stories 2
- Width 72 ft
- Depth 31 ft
Plans

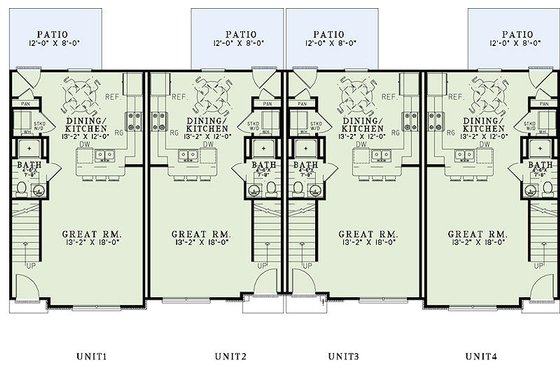

Main Floor

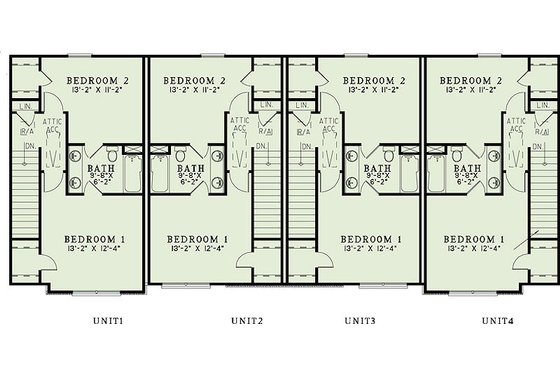

Upper Floor
Plan Description
Specifications
- Foundation Plan - (1/4" or 1/2" = 1') Most plans are available with a slab or crawlspace foundation: Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
- Floor Plans (1/4"= 1') Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of Elevations (1/4"= 1') All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building Sections (1/4" or 1/2" = 1') The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- Kitchen and Bath Elevations (1/2" = 1') The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer
- Miscellaneous Details (3/4" = 1') These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof Overview Plan (1/4" = 1') This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles
Pricing
Plan Set Price
Foundation Price
Additional Construction Sets Price
Right-Reading Reverse Price
Plan Content
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas. Most of our plans show a basement and alternate crawl space or slab plan.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
