- Cover Sheet displaying front rendering of home
- Floor Plans drawn at 1/4" = 1' scale
- Foundation Plans drawn at 1/4" = 1' scale
- Exterior Elevations of all four views, front at 1/4" = 1' scale. Rear and sides vary from 1/8" to 1/4" = 1' scale
- Building Sections and Details as required to build the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plan showing peaks and valleys of roof design
- Schematic electrical plans with suggested switch, outlet, and light fixture locations
- General Specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Plan Set Price
Additional Construction Sets $50.00/each
Mirror Reverse Sets $40.00/each
Right-Reading Reverse $295.00
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas. Most of our plans show a basement and alternate crawl space or slab plan.

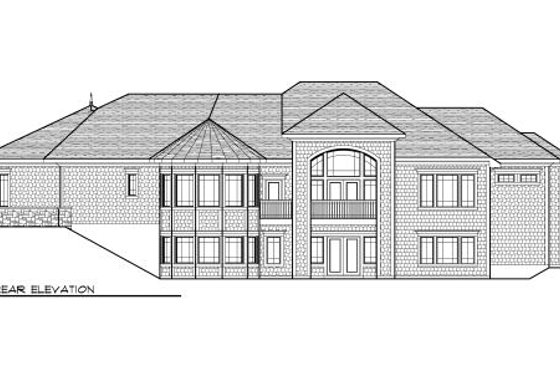

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

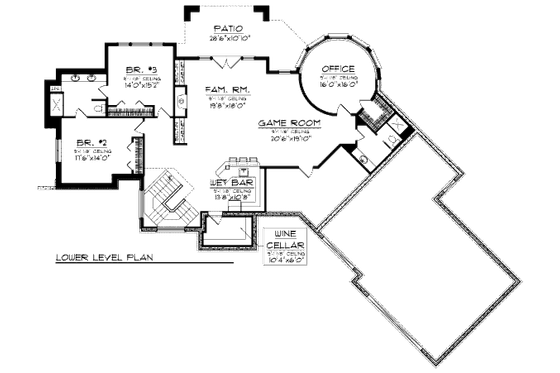

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Best Price Policy
To find out what documents you should expect with your house plans, see what's included?
How much will this cost to build?
This plan can be modified!
