Plan #126-157

Key Specs


  • 3 Bedrooms

  • 2.5 Bathrooms

  • 3 Floors

  • No Garage

  • 4294 sq ft

Plan Description

Narrow Lot Duplex. Get the most out of your narrow lot with this craftsman style, three bedroom duplex. This plan features a walk-in closet and en suite in the master bedroom, large secondary bedrooms with extra deep closets, an open living area design, and a functional laundry room. Width 20 feet plus cantilevers.

Full Specs & Features

Basic Features

Garage Stalls : 0
Potential Bedrooms : 0
Baths : 2.5
Stories : 3
Bedrooms : 3

Dimension

Depth : 95'
Width : 23'
Height : 26'

Area

Basement Sq Ft : 1400 sq ft
Upper Floor Sq Ft : 1484 sq ft
Patios Sq Ft : 345 sq ft
Total Sq Ft : 4294 sq ft
Main Floor Sq Ft : 1410 sq ft

Ceiling

Lower Ceiling Ft : 8'
Upper Ceiling Ft : 9'
Main Ceiling Ft : 9'

Roof

Primary Pitch : 5:12
Roof Framing : Trusses
Roof Load : 65
Roof Type : Asphalt Shingles

Exterior Wall Framing

Insulation : R22
Exterior Wall Finish : Horizontal & Shingle Hardboard
Framing : 2"x6"

Bedroom Features

Upstairs Bedrooms
Walk In Closet
Upstairs Master Bedrooms

Kitchen Features

Breakfast Nook

Additional Room Features

Storage Area
Hobby Rec Room Game Room
Main Floor Laundry
Unfinished Future Space

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Code Compliance

Irc 2006
Nbcc

Structural Information Provided

Foundation Drawing
Structural Notes
Structural Roof Framing
Structural Calculations
Structural 2nd Floor Framing
Structural 1st Floor Framing

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Floor Plans

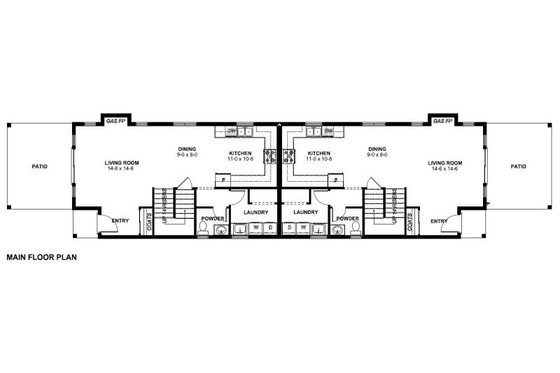

Main Floor Plan
Saved! Traditional Style House Plan - 3 Beds 2.5 Baths 4294 Sq/Ft Plan #126-157 Main Floor Plan - Houseplans.com

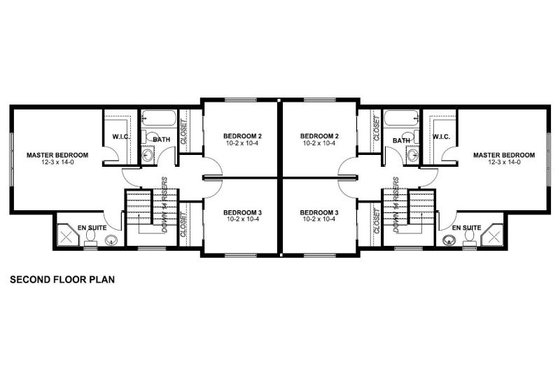

Upper Floor Plan
Saved! Traditional Style House Plan - 3 Beds 2.5 Baths 4294 Sq/Ft Plan #126-157 Upper Floor Plan - Houseplans.com

What's included in this plan set

  • Floor Plans Including electrical
  • Foundation Plan
  • Cross Sections and other detail sections when required
  • Cabinet and Stair Details
  • Exterior Elevations - All four sides
  • Cover Page with artists rendering
  • Misc. Construction and Code Notes

Pricing

Plan Set Price

5 Copy Set
$800.00
8 Copy Set
$900.00
Reproducible Set
$950.00
CAD Set
$1600.00
Single Set
$730.00

Foundation Price

Basement
+$0.00
Crawlspace
+$0.00
Slab
+$250.00

Additional Construction Sets $45.00/each

Mirror Reverse Sets $50.00/each

Right-Reading Reverse $150.00

Material List $100.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $800.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.
