Photographs may show modified designs. All images are copyrighted.

  • Plan 27-207

  • 4696 sq ft
  • 4 beds
  • 5 baths
  • 75' wide
  • 118' deep
more details
Houzz
Email Print

Floor Plans

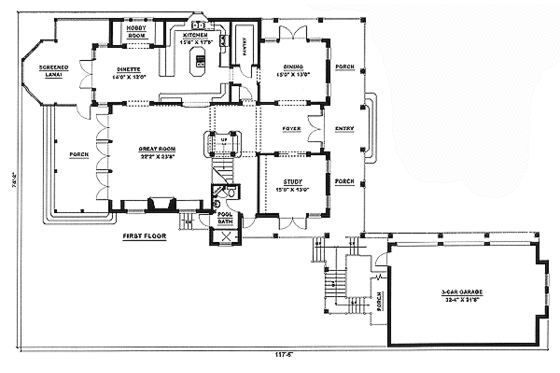

Main Floor Plan

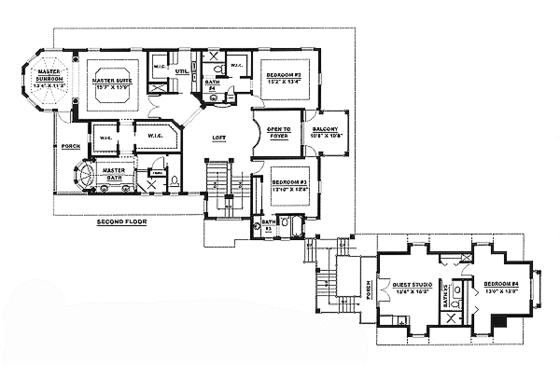

Upper Floor Plan

Specifications

Basic Features

Potential Bedrooms
0
Garage Stalls
3
Baths
5
Stories
2
Bedrooms
4

Area

Main Floor Sq Ft
2133 sq ft
Upper Floor Sq Ft
2563 sq ft
Total Sq Ft
4696 sq ft

Bedroom Features

Walk In Closet
Guest Suite
Upstairs Master Bedrooms

Additional Room Features

Great Room Living Room
Upstairs Laundry
Hobby Rec Room Game Room
Den Office Study Computer
Master Sitting Area

Lot Characteristics

Suited For View Lot
Suited For Corner Lot

Dimension

Width
75'
Height
37'
Depth
118'

Exterior Wall Framing

Framing
Concrete block

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry
Breakfast Nook
Peninsula Eating Bar

Garage Features

Detached Garage
Side Entry Garage

Outdoor Spaces

Breezeway
Loft Balcony
Screened Porch Sunroom
Covered Front Porch
Covered Rear Porch

Pricing

Plan Set Price

CAD Set
$2286.00
PDF Set
$2286.00
Reproducible Set
$2286.00

Foundation Price

Pier
+$0.00

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Plan Content

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators
Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes
Electrical Layouts
Building Section Markers
All Electrical Outlets, Fixtures, and Switching
Slab Plan - Drawn at 1/8" to 1/4" Scale and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)
Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers
Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness
Miscellaneous Notes and Details
Miscellaneous General Notes
Stairway details (if applicable)

Cost-to-Build

To help you determine if this plan will fit within your budget, our Cost-to-Build™ report will provide you a location specific Cost-to-Build™, which is based on your zip code. Order a Cost-to-Build™ Report today to get an accurate, location specific construction cost for any house plan on Houseplans.com. It's a great way to budget your project and compare different plans. It's an easy process and one of our expert plan advisors will take you through a comprehensive interview to determine the materials, finishes, fixtures and more to help you know in advance the likely cost to build a new home from Houseplans.com's blueprints.

Cost-to-Build Report

Best Price Policy

Some of our plans are also available on other websites and in printed catalogs. We are committed to selling these plans at or below the lowest price available elsewhere. If you find a regularly priced plan (not “on-sale”) for a lower price, we'll beat the advertised price by 5%. We will match the price for any on-sale plans.

More details »

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $2286.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

or call to order: 1-800-913-2350

How much will this cost to build?

This plan can be modified!
