Plan #420-241

Key Specs


  • 4883 sq ft

  • 6 Bedrooms

  • 6.5 Bathrooms

  • 2 Floors

  • 2 Garage

Floor Plans

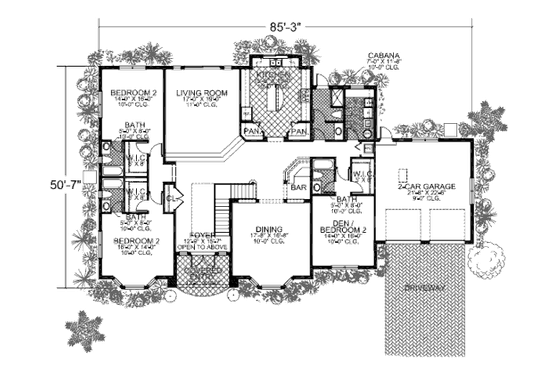

Main Floor Plan
Saved! Mediterranean Style House Plan - 6 Beds 6.5 Baths 4883 Sq/Ft Plan #420-241 Main Floor Plan - Houseplans.com

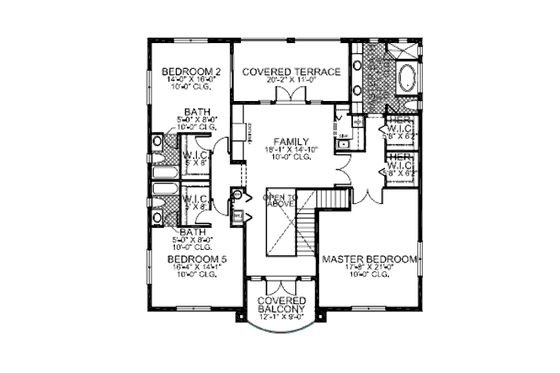

Upper Floor Plan
Saved! Mediterranean Style House Plan - 6 Beds 6.5 Baths 4883 Sq/Ft Plan #420-241 Upper Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Stories : 2
Garage Stalls : 2
Potential Bedrooms : 0
Bedrooms : 6
Baths : 6.5

Dimension

Width : 85'
Height : 33'
Depth : 53'

Area

Porch Sq Ft : 440 sq ft
Upper Floor Sq Ft : 1930 sq ft
Total Sq Ft : 4883 sq ft
Main Floor Sq Ft : 2953 sq ft
Garage Sq Ft : 534 sq ft

Ceiling

Main Ceiling Ft : 10'
Upper Ceiling Ft : 10'

Roof

Primary Pitch : 5:12

Exterior Wall Framing

Framing : Concrete block

Bedroom Features

Main Floor Bedrooms
Walk In Closet
Upstairs Master Bedrooms

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry
Peninsula Eating Bar

Additional Room Features

Storage Area
Family Room Keeping Room
Den Office Study Computer

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Loft Balcony

What's included in this plan set

  • Floor Plans:

    Each plan comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.

  • Kitchen and Bath Layouts:

    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.

  • Elevations:

    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.

  • Sections:

    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.

  • Structural Plans:

    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.

  • Foundation Plan:

    Most Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.

  • Roof Plan:

    Roof and Roof Framing Plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.

  • Mechanical Plans:

    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.

  • Electrical Plans:

    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.

  • Plumbing Plan:

    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Pricing

Plan Set Price

5 Copy Set
$1400.00
PDF Set
$1700.00
Reproducible Set
$1700.00
CAD Set
$2050.00
Single Set
$1200.00

Foundation Price

Slab
+$0.00

Additional Construction Sets $50.00/each

Mirror Reverse Sets $0.00/each

Right-Reading Reverse $250.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
