- COVER PAGE - index, design criteria and your name
- FOUNDATION PLAN - 1/4" scale Showing bolting and hold downs. Most plans come with a monolithic foundation
- FLOOR PLAN - 1/4" scale complete with dimensions and specifications
- ELEVATIONS - 1/4" scale front, right, left, and rear showing all exterior materials and details
- ROOF PLAN - 1/4" scale
- FRAMING PLAN - 1/4" scale shows any shear walls and structural connections
- CROSS SECTIONS ? 1/4" scale shows a North/South and East/West cut
- ELECTRICAL PLAN - 1/4" scale shows all outlets, switches, smoke detectors and panel size
- CONSTRUCTION DETAILS - Footing, wall, floors, and roof details and nailing schedule
- GENERAL NOTES - Covers most construction conditions
Plan Set Price
Additional Construction Sets $50.00/each
Mirror Reverse Sets $0.00/each
Right-Reading Reverse $150.00
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas. Most of our plans show a basement and alternate crawl space or slab plan.

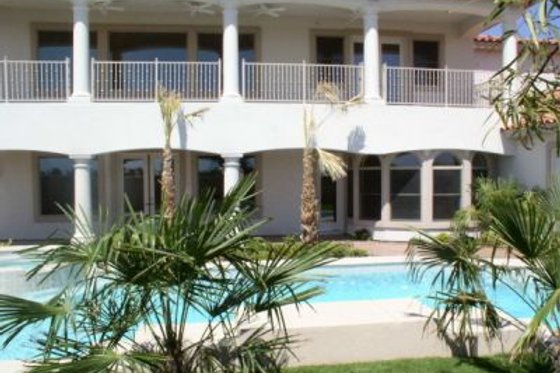

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

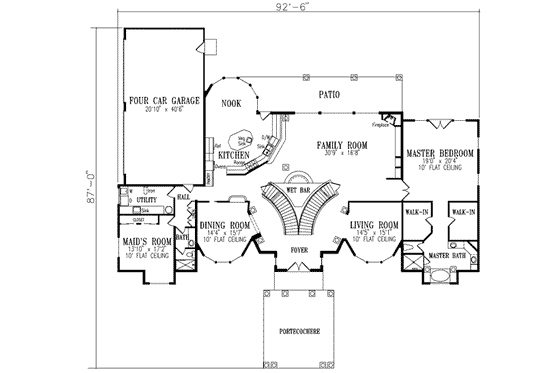

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
