Plan #542-12

Key Specs


  • 5464 sq ft

  • 3 Bedrooms

  • 2 Bathrooms

  • 2 Floors

  • 1 Garage
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

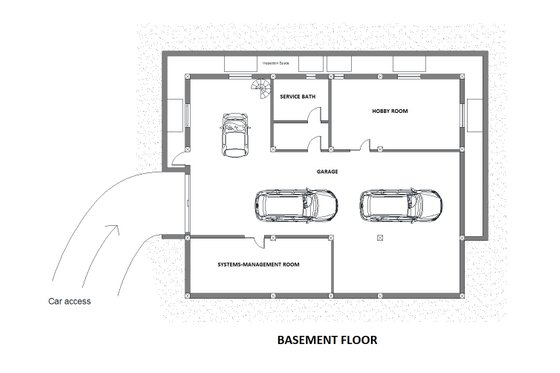

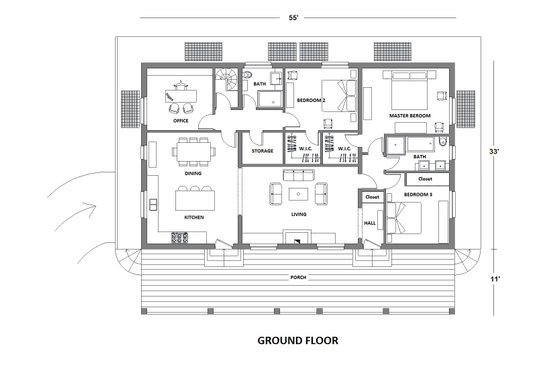

Floor Plan - Main Floor Plan Floor Plan - Lower Floor Plan

Full Specs & Features

Basic Features

Baths : 2
Stories : 2
Garage Stalls : 1
Bedrooms : 3

Dimension

Height : 15'
Depth : 33'
Width : 56'

Area

Garage Sq Ft : 1399 sq ft
Porch Sq Ft : 635 sq ft
Main Floor Sq Ft : 1829 sq ft
Bonus Sq Ft : 1246 sq ft
Total Sq Ft : 5464 sq ft *
Storage Sq Ft : 355 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling Ft : 9'
Lower Ceiling Ft : 9'
Main Ceiling Ft : 15'

Roof

Roof Framing : Wood framing

Exterior Wall Framing

Framing : Wood framing
Insulation : Wood fibre/ mineral wool
Exterior Wall Finish : Plaster

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Additional Room Features

Great Room Living Room
Storage Area
Den Office Study Computer
Main Floor Laundry
Wine Cellar

Garage Features

Garage Under

Entryway

Friend S Entry

Lot Characteristics

Zero Lot Lines
Suited For View Lot
Suited For Corner Lot
Suited For Narrow Lot
Suited For Sloping Lot

Outdoor Spaces

Covered Front Porch

More

Wheelchair Adaptable
Unusual Shape
Unlimited Use
Universal Wheelchair Access
Economical To Build

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing

Plan Options
5 Copy Set $1530.00 5 printed plan sets mailed to you.
CAD Set $1530.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set Best Value! $1530.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $1530.00 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Single Set $1530.00 One printed set for bidding purposes only. Not a legal building set.
Foundation Options
Basement $0.00 Ideal for level lot, lower level of home partially or fully underground.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Meet the Designer - Lucia Strona

null - Houseplans.com
“Architecture is an art that blends history, geography, science, anthropology, environment, and society. This art does not exist without people and their hopes, expectations and passions. It mirrors all these aspects. One must be able to listen, but immediately below the priority of listening is that of the architect, with her notion of consistency. Basically, good architecture does not exist without a good customer.”

Lucia was born in Milan and graduated in Architecture at the University of Rome 'La Sapienza' (Italy). She specialized in the restoration of historical and architectural heritage, bio-architecture, and landscaping. Following her university studies, she qualified in renewable energy systems, sustainable development, geobiology and Feng Shui planning. She works mainly in Italy, and she is an international member of 'AIA' (The American Institute of Architects). Combining professional activities with artistic painting and studies regarding architecture in extreme environments, Lucia was the author of the first European project entailing "A HUMAN OUT-POST IN A LUNAR LAVA TUNNEL". She cooperates with some specialized editorial magazines, was organizer of and speaker at numerous conferences in the above fields. In Italy, she has received a prize for: "Women with an outstanding entrepreneurial approach to work."

Her professional studio deals mainly with "green" architecture, Feng Shui planning, renewable energy, architectural restoration and landscaping. She also has vast experience in designing modern-houses built according to the 'Natural-House Building Concept'. This approach focuses on Heat Protection; Electrosmog Protection; Wind Draught Protection; Cold and Humidity Protection; and Acoustic Protection. These houses are 'energy efficient' and 'energy-saving' using certified high-quality eco-friendly materials and renewable energy systems. The main structures can be built with structural wood or bio-concrete/masonry. These concepts may be adapted to an infinite variety of home styles.

What's included?
Available for quick pdf download

Subtotal Now $1530.00

You save $170.00 (10% savings)

Sale ends on 07/02/2015
