Plan #27-454

Key Specs

  • 5607 sq ft

  • 4 Bedrooms

  • 4 Bathrooms

  • 1 Floor

  • 3 Garage

Plan Description

This house plan combines all the elegance one would expect in a Mediterranean design along with a functional and comfortable layout perfect for entertaining friends and family. With a luxurious Master suite, large island kitchen, a study that could easily become a 5th bedroom and elaborate ceiling designs throughout, this home plan features many attractive amenities including an outdoor kitchen with bar, plenty of windows for natural light and multiple glass sliders that pocket out of view for a seamless transition to the covered lanai. Please note, this design is not available for purchase for construction in Florida.
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

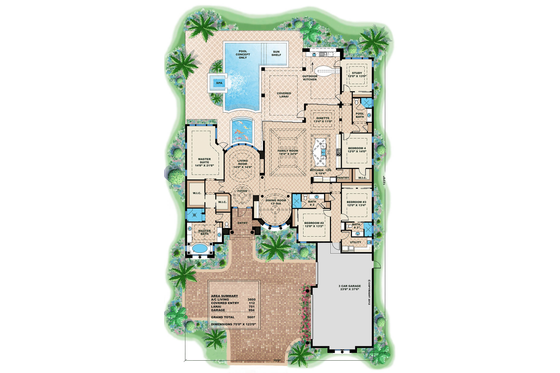

Floor Plan - Main Floor Plan
Mediterranean Style House Plan - 4 Beds 4 Baths 5607 Sq/Ft Plan #27-454 Floor Plan - Main Floor Plan -

Full Specs & Features

Basic Features

Bedrooms : 4
Garage Stalls : 3
Stories : 1
Baths : 4


Width : 75'
Depth : 123'
Height : 26' 9"


Total Sq Ft : 5607 sq ft *
Garage Sq Ft : 994 sq ft
Patios Sq Ft : 701 sq ft
Main Floor Sq Ft : 3800 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Main Ceiling Ft : 12'
Ceiling Details : Coffer, Double Coffer, Tray


Primary Pitch : 6:12
Roof Framing : Manufactured Trusses
Roof Type : Cement tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : CMU

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Main Floor Bedrooms
In Law Suite

Kitchen Features

Breakfast Nook
Butler's Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry
Peninsula Eating Bar

Additional Room Features

Den Office Study Computer
Wet Bar
Storage Area
Main Floor Laundry
Master Sitting Area
Nursery Room
Family Room Keeping Room

Garage Features

Side Entry Garage
Oversized Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Rear Porch
Outdoor Kitchen Grill


Suited For Vacation Home
Wheelchair Adaptable

What's included in this plan set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.
Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators
Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes
Electrical Layouts
Building Section Markers
All Electrical Outlets, Fixtures, and Switching
Slab Plan - Drawn at 1/8" to 1/4" Scale and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)
Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers
Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness
Miscellaneous Notes and Details
Miscellaneous General Notes
Stairway details (if applicable)
