Plan #22-438

Key Specs


  • 576 sq ft

  • 0 Bedrooms

  • 0 Bathrooms

  • 1 Floor

  • 2 Garage

Floor Plans

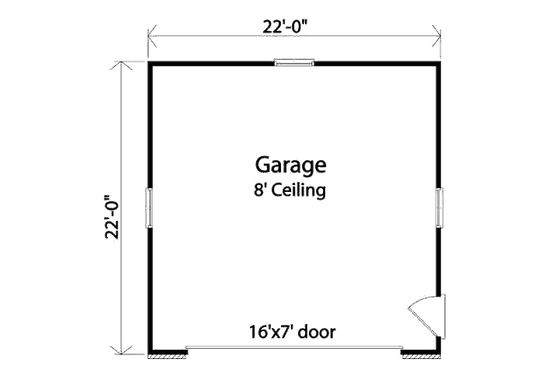

Main Floor Plan
Saved! Traditional Style House Plan - 0 Beds 0 Baths 576 Sq/Ft Plan #22-438 Main Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Stories : 1
Garage Stalls : 2
Potential Bedrooms : 0
Bedrooms : 0
Baths : 0

Dimension

Width : 24'
Height : 14'
Depth : 24'

Area

Total Sq Ft : 576 sq ft
Main Floor Sq Ft : 576 sq ft
Garage Sq Ft : 576 sq ft

Ceiling

Main Ceiling Ft : 8'

Roof

Roof Framing : Truss
Roof Type : shingle
Primary Pitch : 5:12

Exterior Wall Framing

Framing : 2"x4"
Exterior Wall Finish : brick/siding

More

Economical To Build

What's included in this plan set

This plan will include:

  • A foundation plan
  • Floor plan(s)
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • House section
  • Typical stair and wall sections and other related details pertinent to a particular design.

Pricing

Plan Set Price

5 Copy Set
$215.00
PDF Set
$235.00
Reproducible Set
$270.00
CAD Set
$375.00
Single Set
$150.00

Foundation Price

Slab
+$0.00

Additional Construction Sets $25.00/each

Mirror Reverse Sets $0.00/each

Material List $40.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
