Plan Description


Mid-century modern with subtle homages to R. M. Schindler and Charles and Ray Eames, this is also our most personal design. For decades we've been intrigued by Chinese puzzle interiors that perfectly combine sleeping, sitting, and working while leaving no square inch unused. This is our latest iteration; if you're looking for vertical space, stairs to climb or sit on, and a sleeping loft overlooking the living room (and we know you are), then this is your house. Interior Features 584 square feet 1st Floor Open living room and full kitchen, with sliding doors opening to raised covered side patio. Partial 2-story space, stairs to 2nd floor loft include built-in storage and bookcases. Full bathroom. Space for compact washer/dryer. Den/Guestroom/Office sized for queen bed or sofa bed, with built-in storage and closet. Entry door opening to raised side patio. 2nd Floor Loft Bed loft overlooking living room, sized for a king bed, with built-in closets, storage, and bookshelves. Bathroom. Exterior Features 629 square feet. Raised partially covered side patio at entry, with built-in planters and outdoor kitchen. Vegetable garden at front of house. Total Footprint 1,213 square feet.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

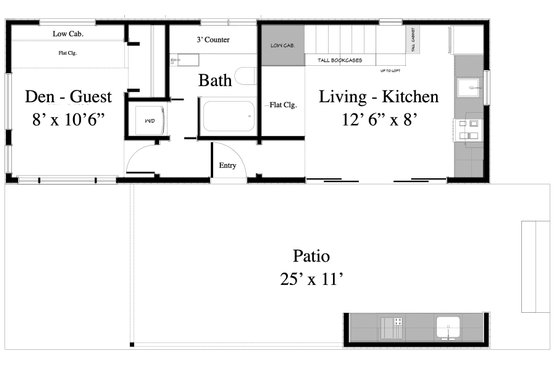

Floor Plan - Main Floor

houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

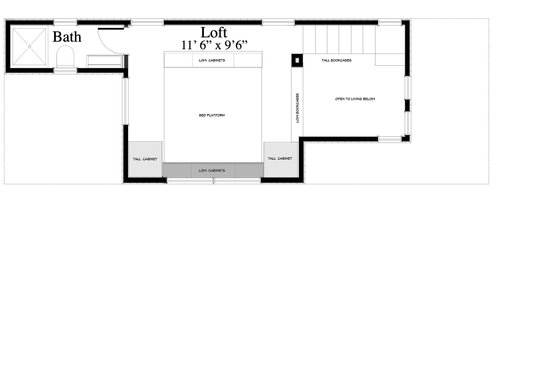

Floor Plan - Upper Floor

Full Specs & Features


Basic Features

Bedrooms : 1
Baths : 2
Stories: 2
Garages: 0

Dimension

Depth : 23' 2"
Height : 12' 11"
Width : 38' 4"

Area

Total : 584 sq/ft
Main Floor : 434 sq/ft
Patios : 629 sq/ft
Upper Floor : 150 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 7'

Roof

Primary Pitch : 0:12
Roof Framing : Stick

Exterior Wall Framing

Framing : 2x4

Additional Room Features

Den Office Study Computer
Great Room Living Room

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch
Outdoor Kitchen Grill

More

Empty Nester
Suited For Vacation Home

What's included in this plan set


See a sample plan set

A1- Cover Sheet:

  • General Notes
  • Full-color exterior rendering of the Garage/Apartment
A2 - Foundation and Floor Plan
  • Drawn to a scale of 1/4"=1'-0" (1/4 inch equals 1 foot; 1 inch equals 4 feet)
  • Position and dimensions of doors, windows, interior walls, etc. are indicated
A3 - Roof Plans
  • Drawn to 1/4-inch scale
  • Dimensioned Roof Plan and Roof Framing Plan
A4 - Exterior Elevations:
  • Drawn to 1/4-inch scale
  • Detailed drawings of the front and right side of the building
  • Suggested window sizes and types
  • Suggested exterior materials, and critical vertical dimensions
A5- Exterior Elevations:
  • Drawn to 1/4-inch scale
  • Detailed drawings of the rear and left side of the building
  • Suggested window sizes and types
  • Suggested exterior materials, and critical vertical dimensions
A6- Building Section and Details:
  • Building Section drawn to 3/8-inch scale
  • Wall and roof section
  • Indicates dimensions of wall plate heights from slab-on-grade
  • Indicates eave overhang dimension from exterior wall studs
  • Generic exterior wall details, not to scale
E1- Schematic, Generic Electrical Layouts:
  • Drawn to 1/4-inch scale
  • Suggested locations for electrical components: lighting fixtures, switches, and outlets
PDF Plan Sets - all printed in color on 11" x 17" paper.
  • Cheaper to print/copy than larger format plan sets.
  • Easier to use on the job site.
  • Easier to use when shopping for tile, etc.
  • More convenient to archive after your house or accessory building is complete.

* See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$594.15
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Audio Video Design

$85.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$85.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unlimited Use License

$297.08
Allows you to build this home as many times as you want.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

Meet the Designer

The Homestead Partners

The Homestead Partners - Houseplans.com
House plans for small, big, colonial, modern, and everything in between. You may insist on having more than one. We're Ron Sakal and Sallie Hood (sakal-hood.com), a husband-and-wife team of architects who've spent decades creating workable townscapes, rescuing city centers from random development, designing beautiful houses, and teaching bright young architecture students how to do the same. Along the way, we've become experts on the styles of American houses, ideas, designs, and materials that transform small and affordable spaces into wonderful places to live. Now we're offering those great American styles to everyone who yearns for something more interesting and more connected to the American culture. Look around our collection of houses and see what moves you. After that, our firm is just like that home of yours: small and affordable. Ron Sakal, formerly Executive Director and co-founder of the Center for Building Communities and Professor of the practice, University of Notre Dame School of Architecture. Sallie Hood, formerly director of designs and co-founder of the Center for Building Communities and Professor of the practice, University of Notre Dame School of Architecture. Introducing the "The California Collection" - Less than half the size of a doublewide. Six gorgeous little 400-square-foot houses, each with full kitchens and bathroom, private bedroom with space for at least a queen-size bed, living/dining/kitchen that opens to an outdoor dining patio or terrace, and plenty of storage. Big enough to have a friend over. Just make sure you're in love with them first. Santa Barbara (Plan # 917-3) Santa Cruz (Plan # 917-4) Rancho Mirage (Plan # 917-1) San Rafael (Plan # 917-2) Sonoma (Plan # 917-6) Silverlake (Plan # 917-5) Introducing the "Lake Cottage Collection" - Charming and cozy, but not too sweet. Inspired by the 1920s cottages on the eastern shore of Lake Michigan, here's a compound for your extended family. Or one house for you. There are five: two big, two medium, and one small, with two garages to mix and match. Union Pier (Plan # 917-13) Lakeside (Plan # 917-12) 2 Car Garage w/Studio (Plan # 917-10) 1 Car Garage w/Studio (Plan # 917-8) Studio (Plan # 917-11) 2 Car Garage (Plan # 917-9) 1 Car Garage (Plan # 917-7) Click the plan images below to explore these two great collections.
