Plan #27-397

Key Specs


  • 6162 sq ft

  • 5 Bedrooms

  • 4.5 Bathrooms

  • 3 Floors

  • 3 Garage
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

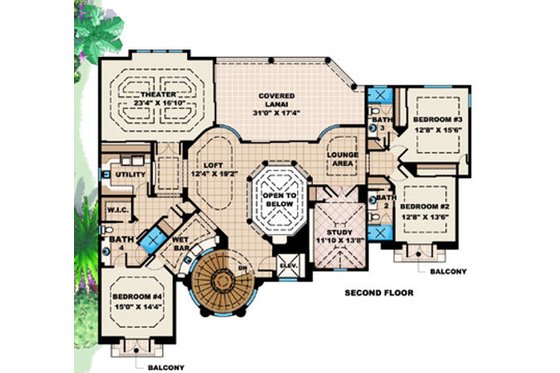

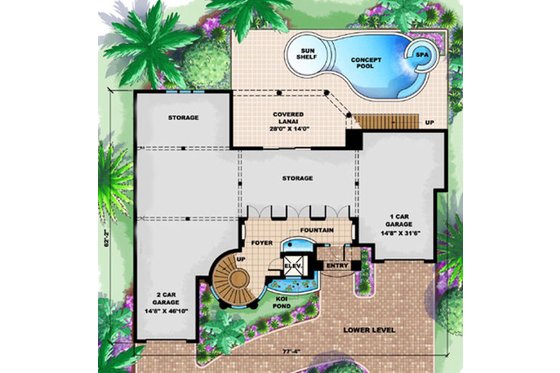

Floor Plan - Lower Floor Plan Floor Plan - Main Floor Plan Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Bedrooms : 5
Potential Bedrooms : 0
Stories : 3
Garage Stalls : 3
Baths : 4.5

Dimension

Height : 46'
Depth : 62'
Width : 77'

Area

Total Sq Ft : 6162 sq ft *
Porch Sq Ft : 1504 sq ft
Garage Sq Ft : 2575 sq ft
Lower Floor Sq Ft : 486 sq ft
Main Floor Sq Ft : 2975 sq ft
Upper Floor Sq Ft : 2701 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Exterior Wall Framing

Framing : Concrete block

Bedroom Features

Walk In Closet
Main Floor Master Bedroom
Guest Suite
Split Bedrooms
Main Floor Bedrooms
In Law Suite

Kitchen Features

Walk In Pantry Cabinet Pantry
Peninsula Eating Bar
Kitchen Island
Breakfast Nook

Additional Room Features

Den Office Study Computer
Master Sitting Area
Family Room Keeping Room
Storage Area
Hobby Rec Room Game Room
Media Room
Workshop
Upstairs Laundry
Library Room

Garage Features

Tandem Garage
Garage Under
Split Garage
Oversized Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Rear Porch
Loft Balcony
Covered Front Porch

What's included in this plan set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

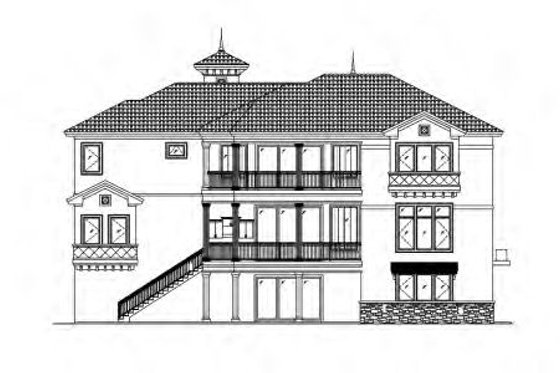

Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
