Plan #411-801

Key Specs


  • 4 Bedrooms

  • 4.5 Bathrooms

  • 2 Floors

  • 3 Garage

  • 6224 sq ft

Floor Plans

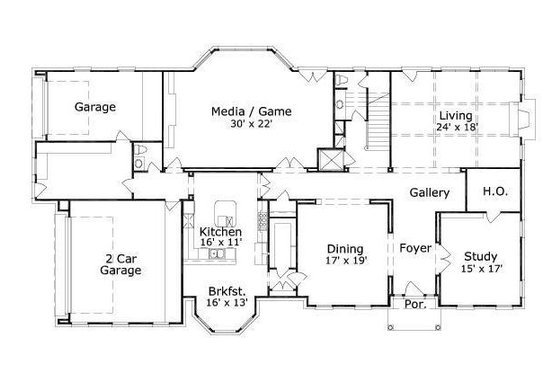

Main Floor Plan
Saved! Traditional Style House Plan - 4 Beds 4.5 Baths 6224 Sq/Ft Plan #411-801 Main Floor Plan - Houseplans.com

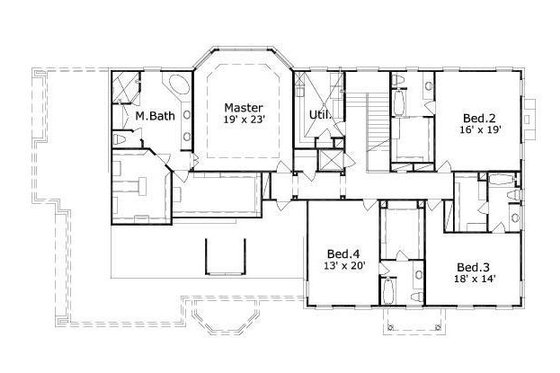

Upper Floor Plan
Saved! Traditional Style House Plan - 4 Beds 4.5 Baths 6224 Sq/Ft Plan #411-801 Upper Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Garage Stalls : 3
Potential Bedrooms : 0
Baths : 4.5
Stories : 2
Bedrooms : 4

Dimension

Depth : 54'
Width : 95'
Height : 35'

Area

Upper Floor Sq Ft : 2840 sq ft
Total Sq Ft : 6224 sq ft
Main Floor Sq Ft : 3384 sq ft

Ceiling

Upper Ceiling Ft : 9'
Main Ceiling Ft : 10'

Bedroom Features

Upstairs Master Bedrooms

Kitchen Features

Butler's Pantry
Walk In Pantry Cabinet Pantry
Kitchen Island
Breakfast Nook

Additional Room Features

Den Office Study Computer
Storage Area
Hobby Rec Room Game Room
Wine Cellar
Exercise Room
Media Room
Unfinished Future Space
Master Sitting Area

Garage Features

Oversized Garage
Side Entry Garage
Split Garage

Entryway

Friend S Entry

Outdoor Spaces

Covered Front Porch

What's included in this plan set

ELEVATIONS:

  • Rendered front elevation
  • Floor to floor & plate heights
  • Roof pitches
  • Exterior materials labeled
  • Window & door shapes & design


  • FLOOR PLANS:

  • Complete & accurate dimensions
  • Floor & ceiling heights
  • General architectural features
  • Cabinet, appliance & plumbing layouts
  • Windows, door & openings labeled
  • Room titles
  • Code related & general notes
  • Building section markets
  • Electrical layouts (may be separate plan)


  • BUILDING SECTIONS:

  • Floor to floor dimensions
  • Floor & ceiling changes
  • Floor system dimensions
  • Plate heights labeled
  • Roof pitches indicated
  • Stair section & related notes
  • Misc. framing detail
  • General code related notes for residential construction


  • ROOF PLAN:

  • Roof design
  • Hips, ridges, valleys, etc. labeled
  • Plate heights labeled
  • Notes related to residential construction
  • Code related notes


  • INTERIOR ELEVATIONS:

  • Cabinet elevations
  • Locations of drawers, doors, shelves, etc.
  • Locations of appliances, plumbing & related items
  • Dimensions of heights Specification of door designs & molding will not necessarily be indicated.


  • GENERAL DETAIL:

  • Typical building section
  • Wall sections indicating method of construction & material make-up
  • Misc. framing details
  • Typical lintel & header span tables
  • Fastening & nailing schedules
  • Typical 2 & 3 car detached garage plans
  • General & misc. code related notes


  • DRAWINGS NOT PROVIDED:

  • Foundation plans - A slab interface diagram is provided showing the footprint of the home but does not include structural details for constructing the foundation.
  • Structural engineering
  • HVAC layouts (heating & air conditioning)
  • Detailed specifications
  • Electrical wiring diagrams & load analysis
  • Plumbing diagrams

Pricing

Plan Set Price

5 Copy Set
$1100.00
Reproducible Set
$1250.00
8 Copy Set
$1260.00
CAD Set
$2250.00
Single Set
$870.00

Foundation Price

Slab
+$0.00

Additional Construction Sets $50.00/each

Mirror Reverse Sets $0.00/each

Right-Reading Reverse $250.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $1100.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
or call to order: 1-800-913-2350
