  • Plan 27-463
  • 8436 sq ft
  • 5 beds
  • 5.50 baths
  • 72' 10" wide
  • 125' 10" deep
more details
Houzz
Email Print

Plans

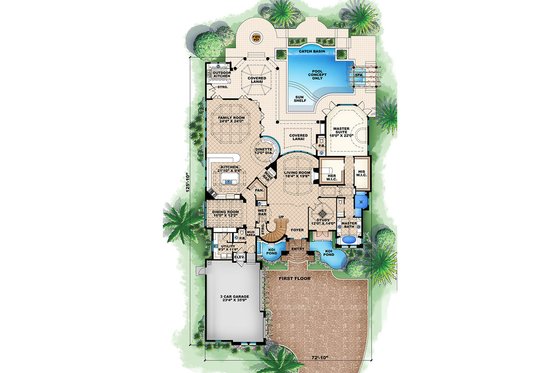

Main Floor Plan
Saved! European Main Floor Plan Plan #27-463 - Houseplans.com

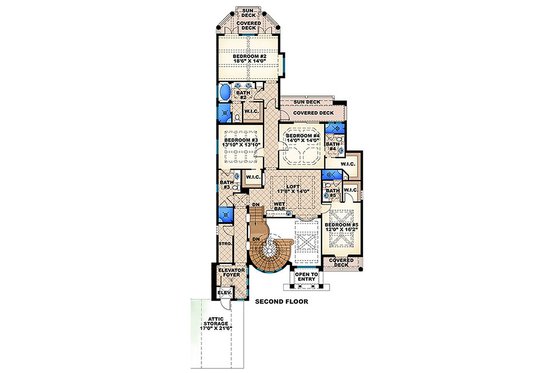

Upper Floor Plan
Saved! European Upper Floor Plan Plan #27-463 - Houseplans.com

Plan Description

This Mediterranean home consists of 5 bedrooms, 5 full baths and 2 half baths. The family room floor plan allows for formal and informal spaces while the exquisite ceiling details maintain an upscale feeling throughout. Enjoy entertaining friends and family outside under your covered lanai complete with an outdoor kitchen, luxury pool and spa and nearby fire pit. Split bedrooms, 2 wet bars, formal wine bar, a handsome study, upstairs loft, massive walk-in closets and several covered decks are just a few other distinctive amenities this Home Plan has to offer.

Specifications

Plan Styles
European
Victorian
Mediterranean
Exterior Wall Framing
Framing
CMU
Exterior Wall Finish
Stucco & Stone Veneer
Plan Feature
Teen Suite Jack Jill Bath
Ceiling
Main Ceiling Ft
10'
Upper Ceiling Ft
12'
Ceiling Details
Barrel, Coffer, Double Coffer, Vault
Roof
Roof Type
Slate Tile
Primary Pitch
8:12
Roof Framing
Manufactured Trusses
Dimension
Width
72' 10"
Height
30'
Depth
125' 10"
Additional Rooms
Den Office Study Computer
Storage Area
Family Room Keeping Room
Master Sitting Area
Wet Bar
Wine Cellar
Nursery Room
Hobby Rec Room Game Room
Main Floor Laundry
Entryway
Mud Room
More
Suited For Vacation Home
Wheelchair Adaptable
Empty Nester
Unique Features
Garage
Oversized Garage
Side Entry Garage
Area
Garage Sq Ft
939 sq ft
Main Floor Sq Ft
3912 sq ft
Decks Sq Ft
304 sq ft
Total Sq Ft
8436 sq ft
Patios Sq Ft
920 sq ft
Upper Floor Sq Ft
2281 sq ft
Bedroom Features
Upstairs Bedrooms Bath
Walk In Closet
In Law Suite
Main Floor Master Bed Bath
Main Floor Bed Bath
Split Bedrooms
Basic Features
Garage Stalls
3
Stories
2
Baths
5.50
Bedrooms
5
Kitchen Features
Peninsula Eating Bar
Kitchenette Wet Bar
Nook Breakfast Area Dining
Kitchen Island
Walk In Pantry Cabinet Pantry
Butler S Pantry
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Outdoor Kitchen Grill
Covered Rear Porch
Loft Balcony

Pricing

Plan Set Price
Reproducible Set
$5000.00
CAD Set
$5000.00
PDF Set
$5000.00
Foundation Price
Crawlspace
+$0.00
Right-Reading Reverse $884.28

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Plan Content

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

  • Elevations - Drawn at 1/8" to 1/4" Scale, and Includes: <DD>Material Labels <DD>Floor-to-Floor Heights <DD>Roof Slope Indicators
  • Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes: <DD>Door and Window Sizes <DD>Completely Dimensioned Floor Plan <DD>Room Labels and Interior Room Sizes
  • Electrical Layouts <DD>Building Section Markers <DD>All Electrical Outlets, Fixtures, and Switching
  • Slab Plan - Drawn at 1/8" to 1/4" Scale and Includes: <DD>Floor and Deck Joist Size and Spacing <DD>Rough-in Plumbing Location (if applicable) <DD>Mechanical Equipment Locations (if applicable) <DD>Electrical Locations (if applicable)
  • Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes: <DD>All Beam and Header Heights and Locations <DD>All Hips, Gables, Ridges and Valleys <DD>Building Section Markers
  • Building Sections - Drawn at 1/8" to 1/4" Scale and Includes: <DD>Floor Joist Size and Spacing <DD>Floor-to-Floor Heights <DD>Non-Typical Plate Heights Indicated
  • Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes: <DD>All Labels Indicating Wall Construction <DD>Foundation Wall Thickness and Reinforcing <DD>Insulation Type and Thickness
  • Miscellaneous Notes and Details <DD>Miscellaneous General Notes <DD>Stairway details (if applicable)

Cost-to-Build

To help you determine if this plan will fit within your budget, our Cost-to-Build™ report will provide you a location specific Cost-to-Build™, which is based on your zip code. Order a Cost-to-Build™ Report today to get an accurate, location specific construction cost for any house plan on Houseplans.com. It's a great way to budget your project and compare different plans. It's an easy process and one of our expert plan advisors will take you through a comprehensive interview to determine the materials, finishes, fixtures and more to help you know in advance the likely cost to build a new home from Houseplans.com's blueprints.

Cost-to-Build Report

Best Price Policy

Some of our plans are also available on other websites and in printed catalogs. We are committed to selling these plans at or below the lowest price available elsewhere. If you find a regularly priced plan (not “on-sale”) for a lower price, we'll beat the advertised price by 5%. We will match the price for any on-sale plans.

More details »

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $5000.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
or call to order: 1-800-913-2350

How much will this cost to build?

This plan can be modified!
