Plan #423-39

Key Specs

  • 1 Bedroom

  • 1 Bathroom

  • 2 Floors

  • No Garage

  • 860 sq ft

Plan Description

Inspired by yesterday, designed for today. Set yourself apart with this charming re-creation. Includes unique features such as ship stairs, exposed rafter tails, and a built-ins. See more plans by this designer to find a matching garage.

Floor Plans

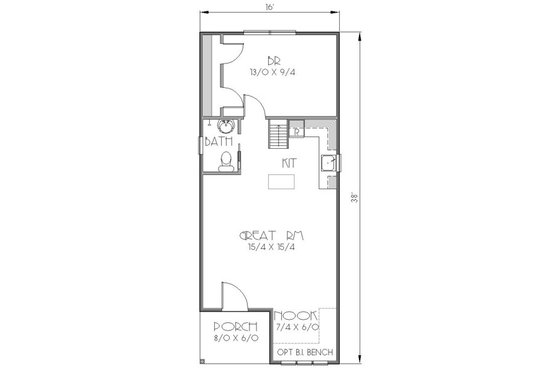

Main Floor Plan Upper Floor Plan

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Garage Stalls : 0
Potential Bedrooms : 1
Baths : 1
Stories : 2
Bedrooms : 1


Depth : 38'
Width : 16'
Height : 19'


Bonus Sq Ft : 300 sq ft
Total Sq Ft : 860 sq ft
Porch Sq Ft : 48 sq ft
Main Floor Sq Ft : 560 sq ft


Bonus Ceiling Ft : 8'
Main Ceiling Ft : 8'


Primary Pitch : 12:12
Roof Framing : hand-cut

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms

Kitchen Features

Kitchen Island
Breakfast Nook

Additional Room Features

Great Room Living Room
Bonus Play Flex Room
Unfinished Future Space

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch


Suited For Vacation Home

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing
Structural Roof Framing
Structural 2nd Floor Framing
Structural 1st Floor Framing

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.


Plan Set Price

Reproducible Set
5 Copy Set

Foundation Price

Pier Post Beam

Additional Construction Sets $35.00/each

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.
